Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Buick
>>
2005
>>
Park Avenue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lamp Control Module
Lamp Control Module

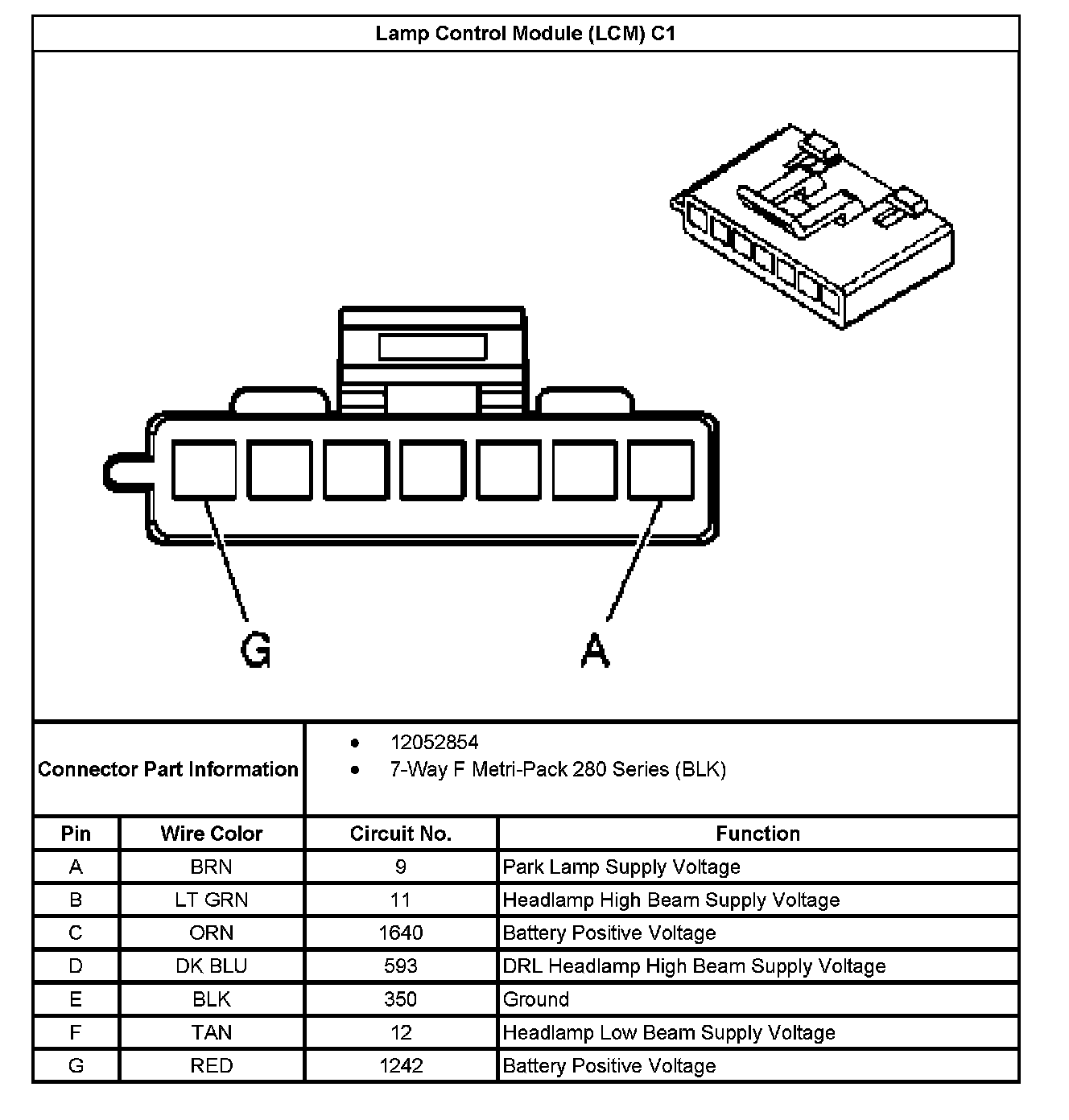

Lamp Control Module (LCM) C1:

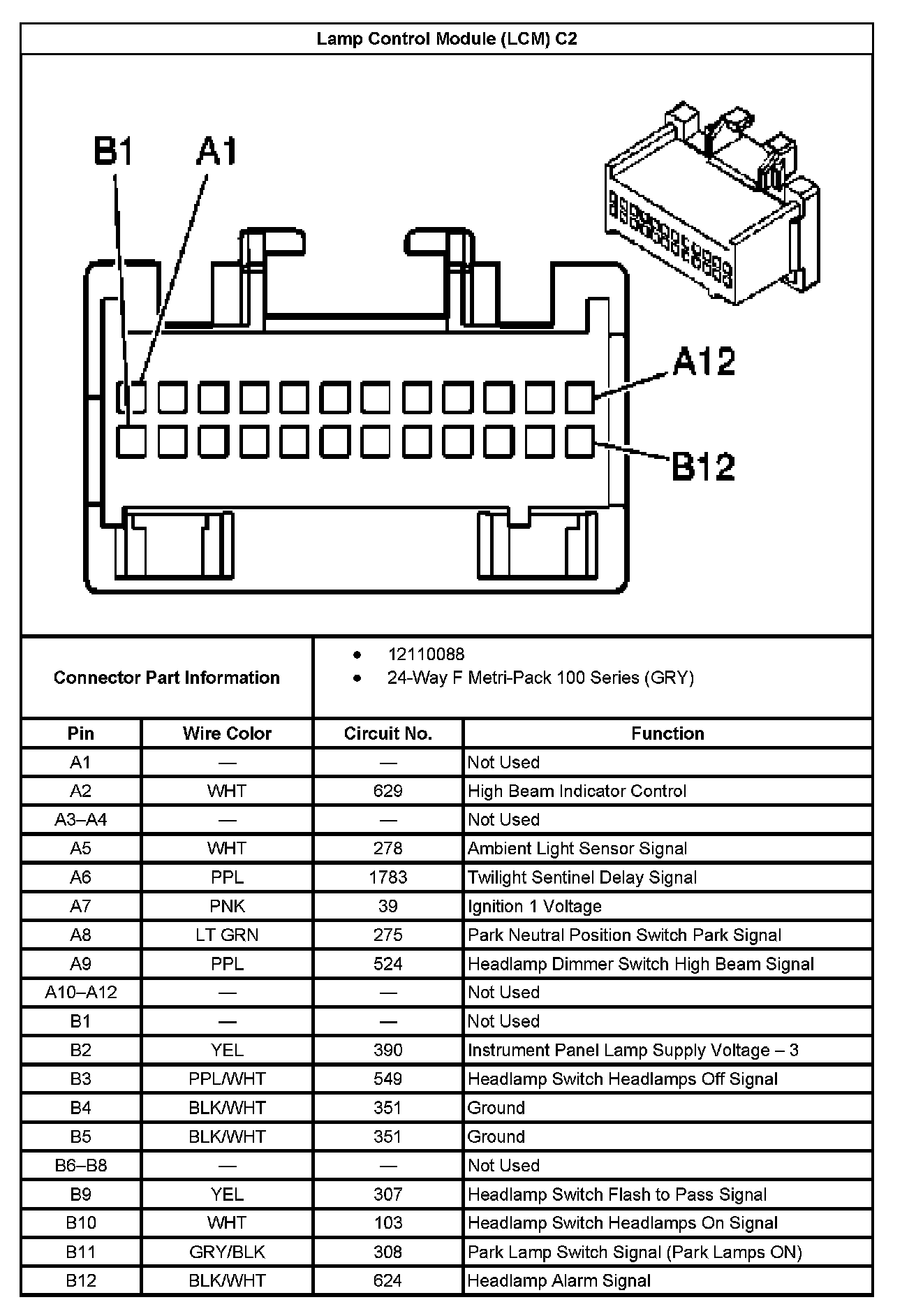

Lamp Control Module (LCM) C2:
