Front Passenger Door Module (FPDM)

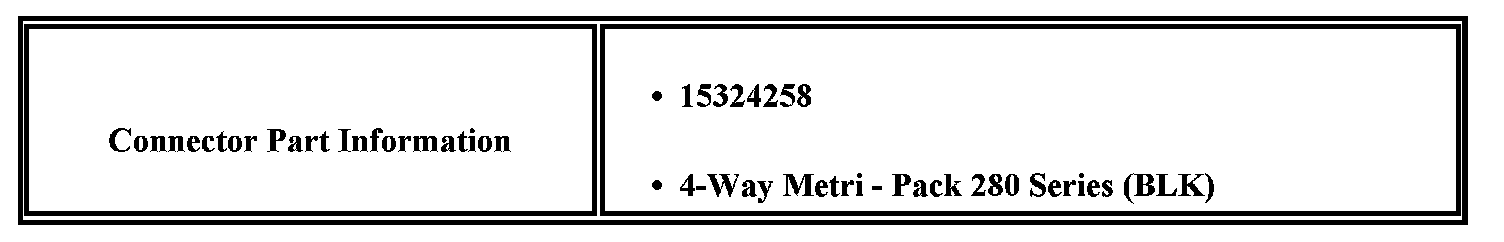

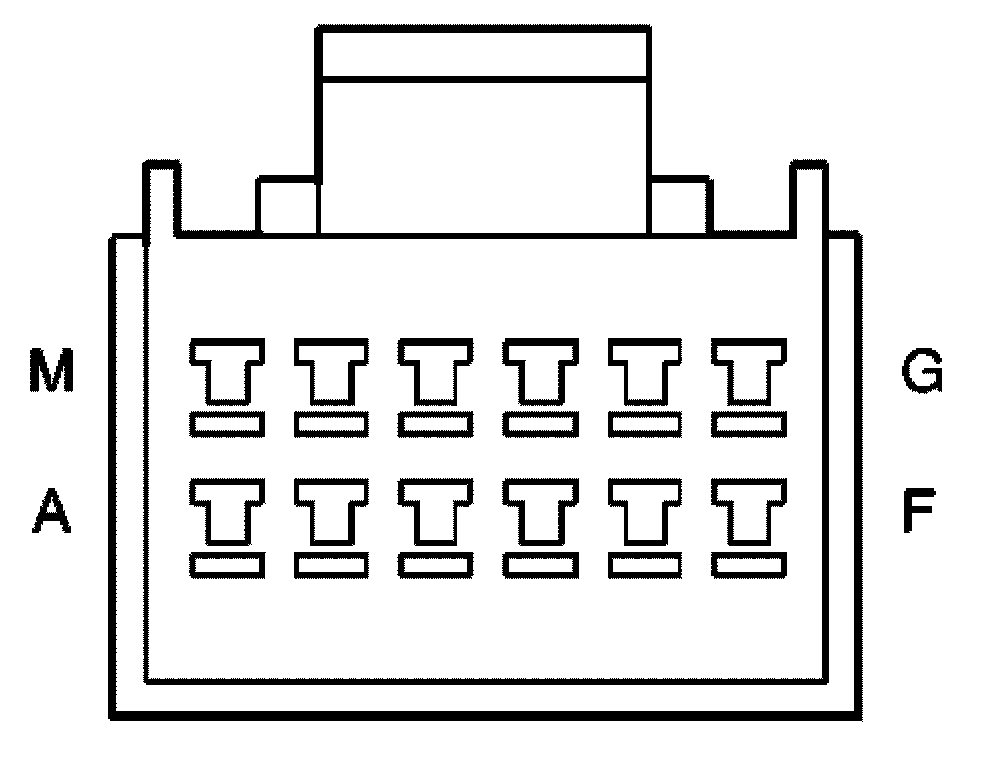

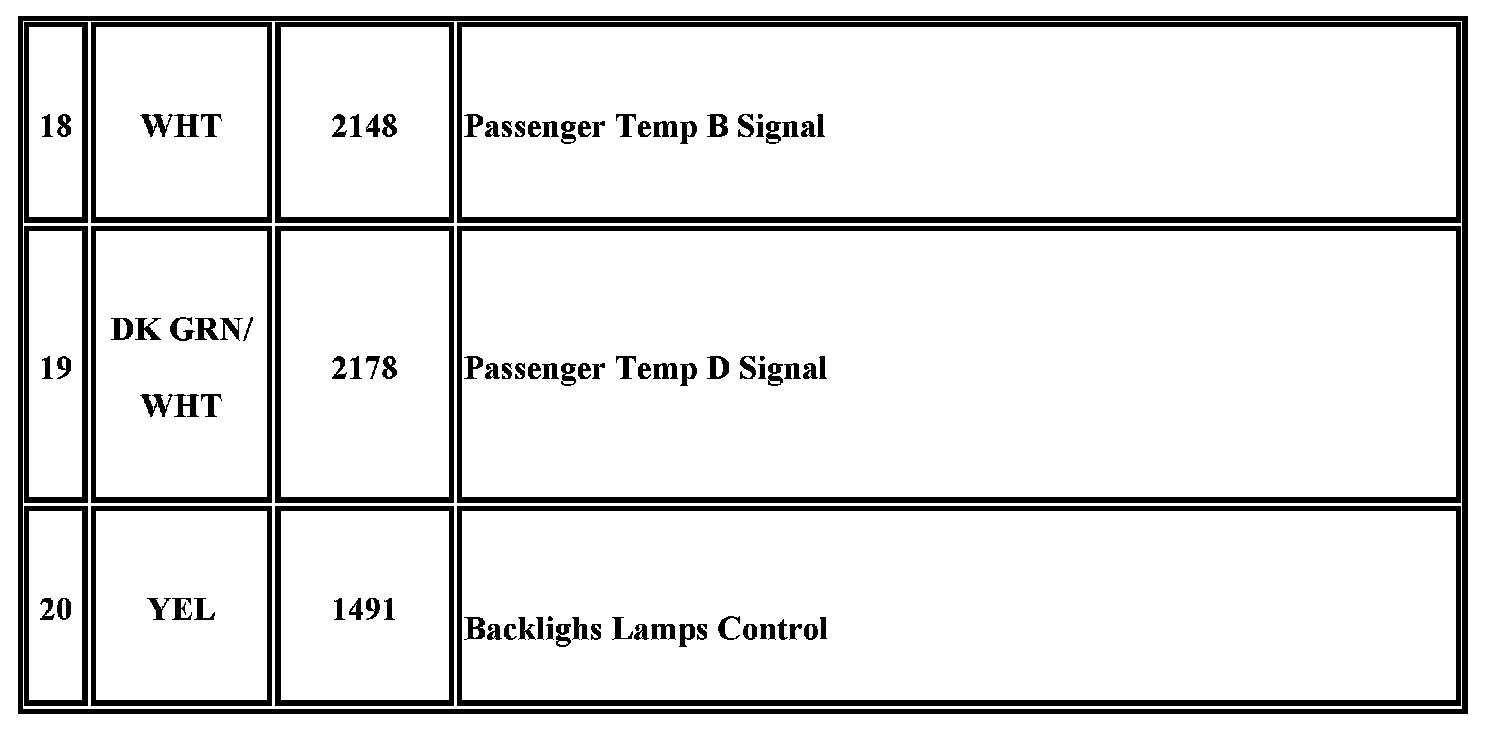

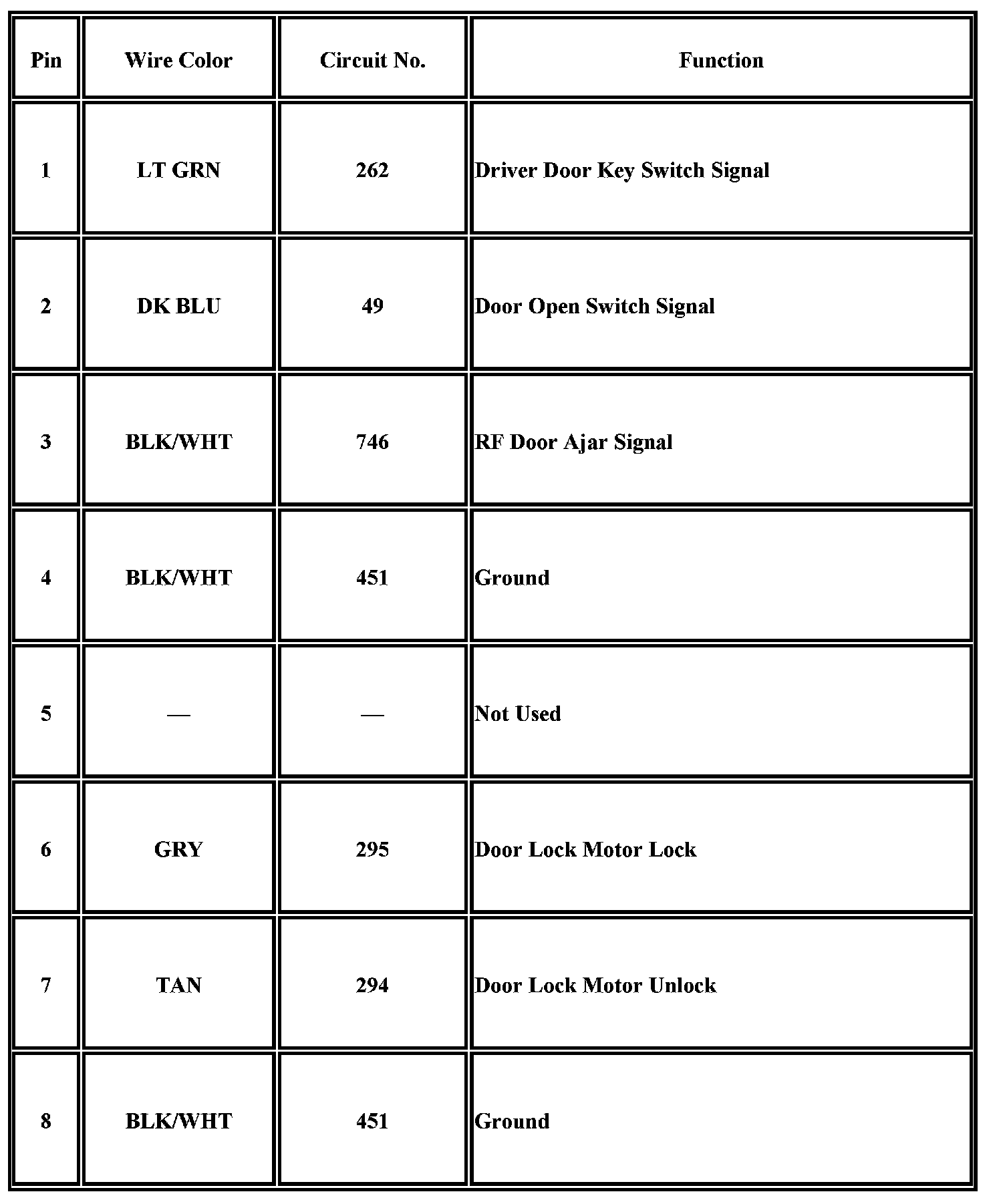

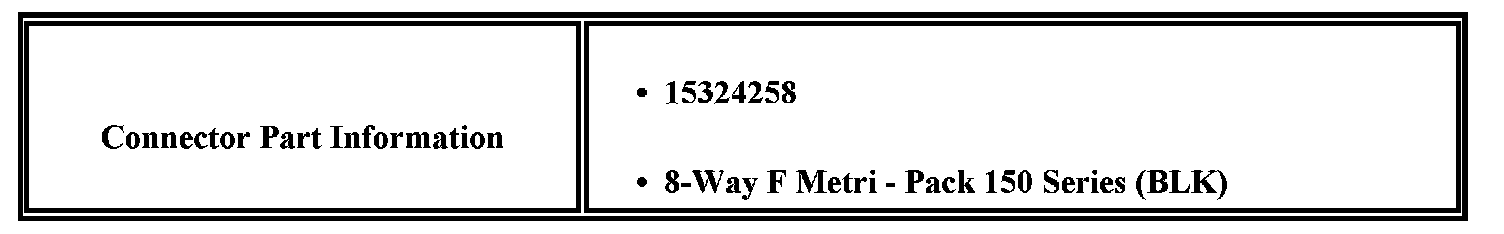

Front Passenger Door Module (FPDM) C1






















Front Passenger Door Module (FPDM) C2














Front Passenger Door Module (FPDM) C3














Front Passenger Door Module (FPDM) C4
