Home >> Buick >> 1992 >> Skylark V6-204 3.3L VIN N FI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module >> Electronic Control Module (ECM) >> C3

C3

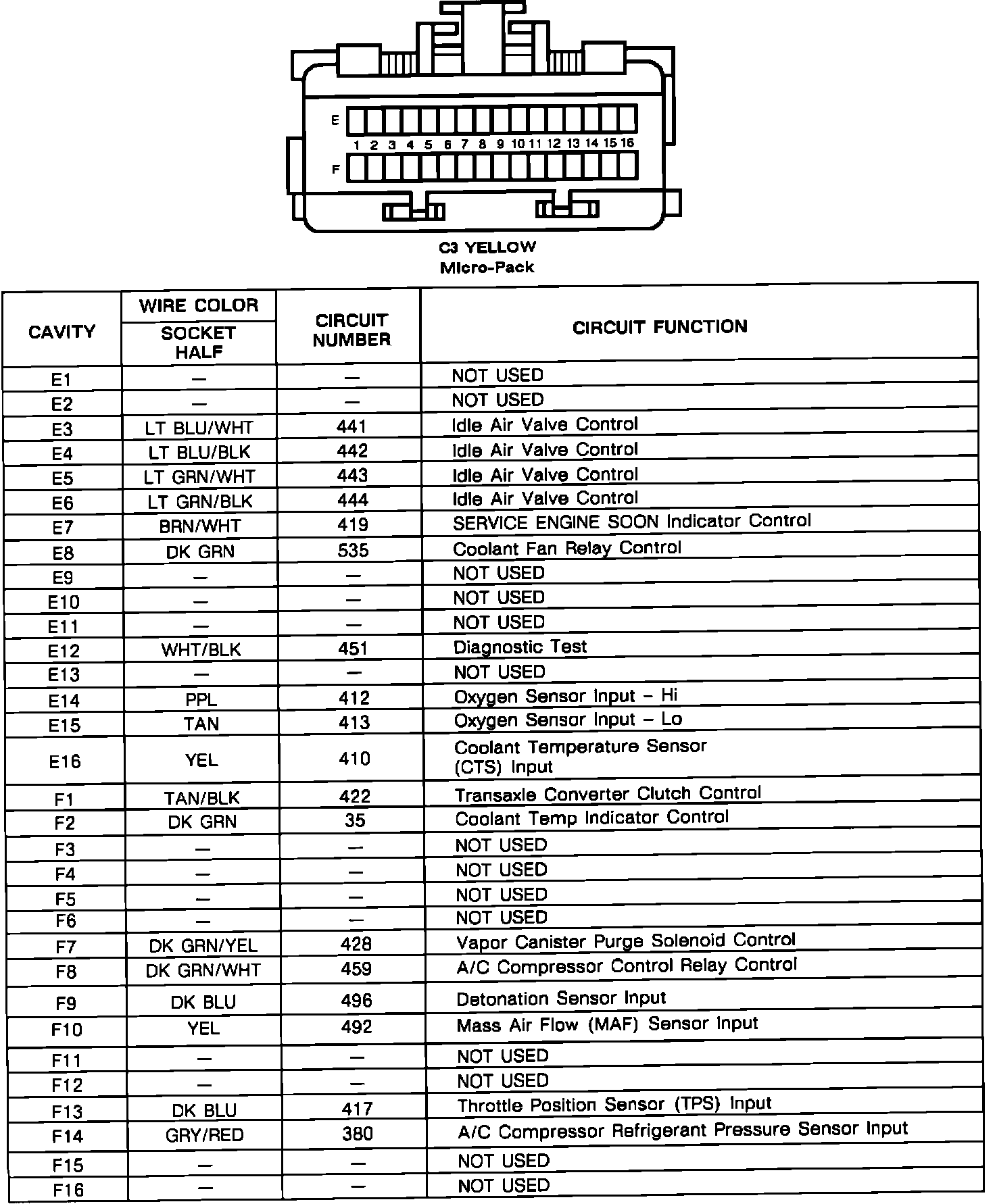

ECM Connector Face: C3:
