Home >> Buick >> 1992 >> Skylark V6-204 3.3L VIN N FI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module >> Electronic Control Module (ECM) >> C2

C2

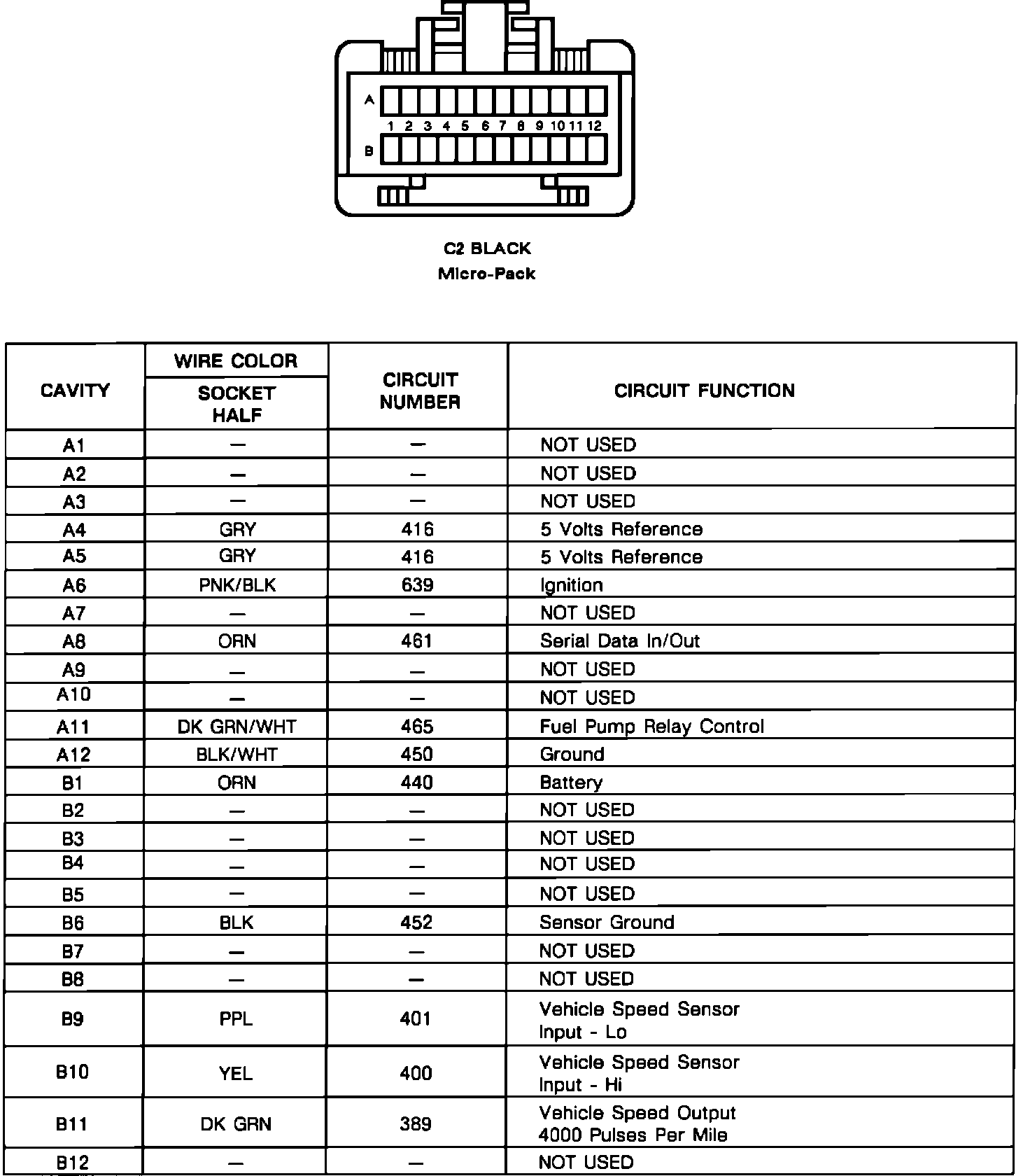

ECM Connector Face: C2:
