Buick
>>
1992
>>
Century L4-151 2.5L VIN R TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
>>
Electronic Control Module (ECM): C1
Electronic Control Module (ECM): C1

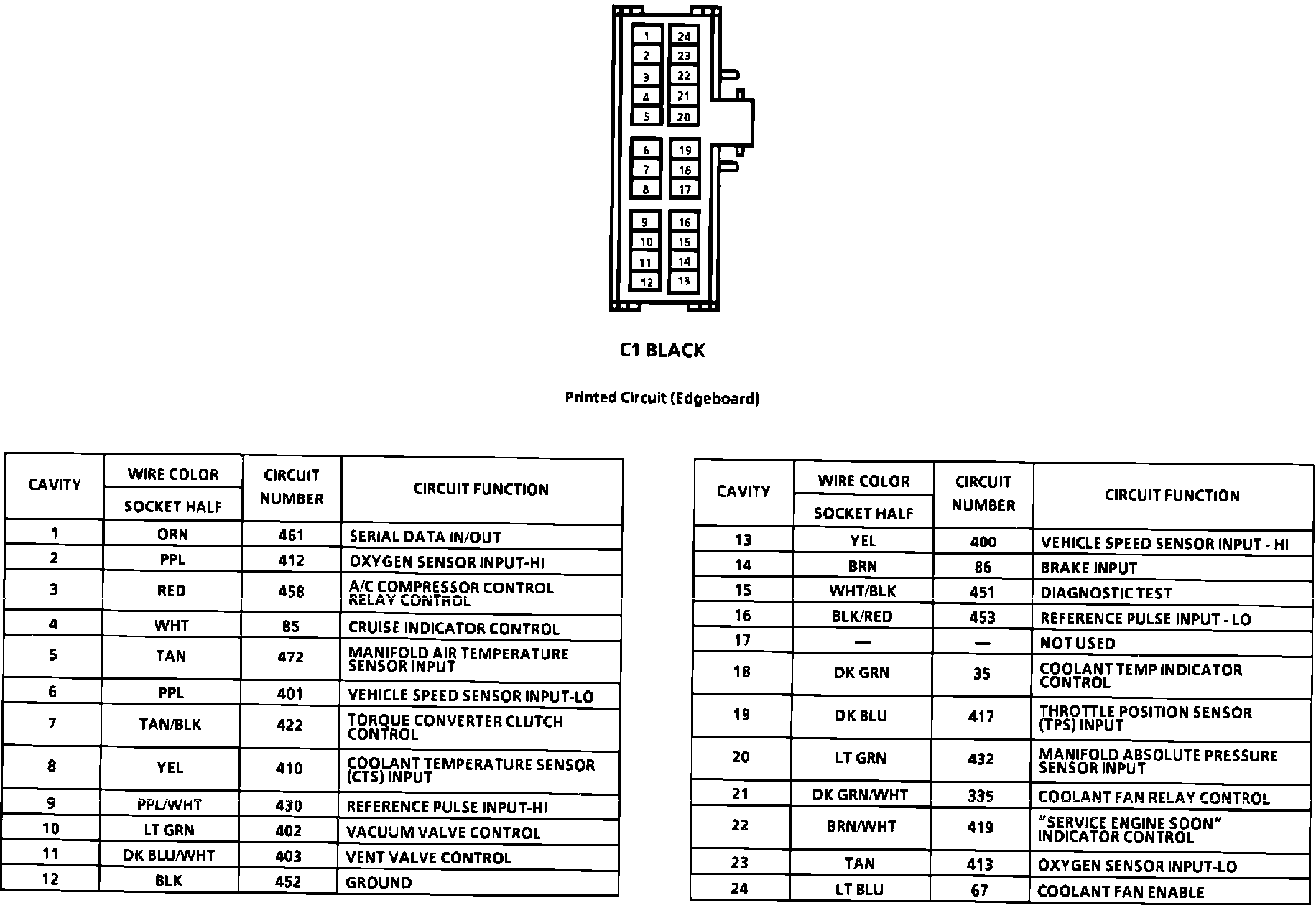

ECM Connector: C1:
