Transmission Fluid Pressure Manual Valve Position Switch Logic



Transmission Fluid Pressure Manual Valve Position Switch Logic

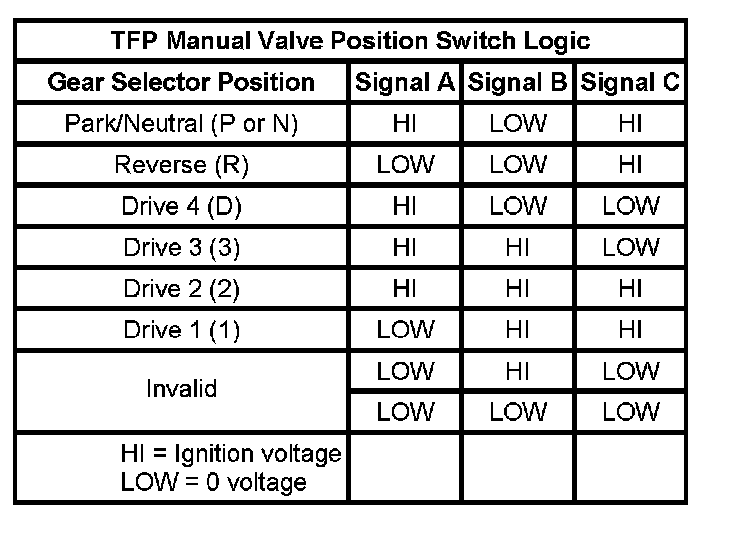

Transmission Fluid Pressure Manual Valve Position Switch Logic:
