Home >> BMW >> 2007 >> M5 (E60) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Motor Electronics (DME Motor Electronics MSS65) >> Interfaces >> Bit-Serial Data Interface (BSD) >> BSD Alternator (As of 03/07)

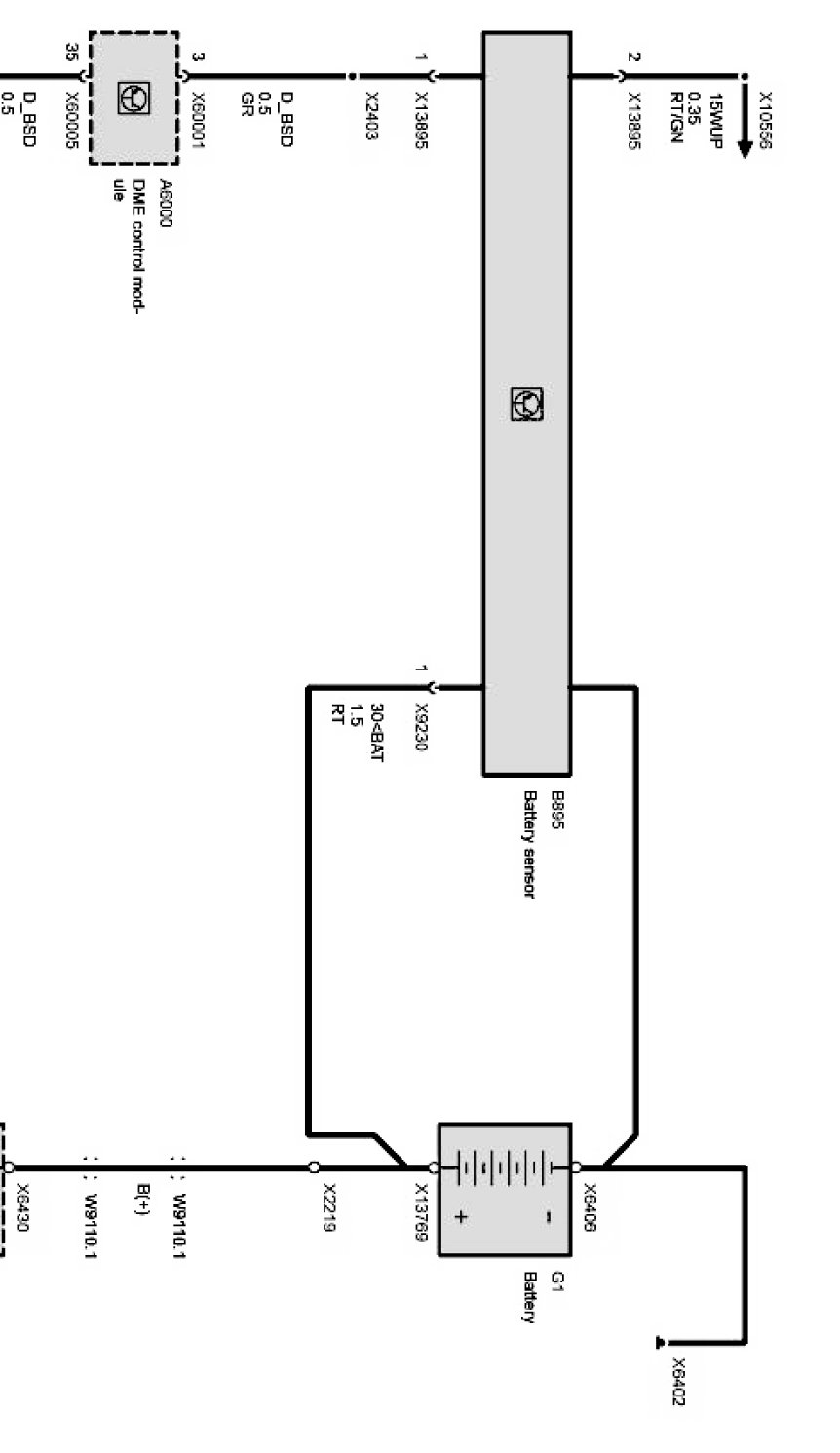

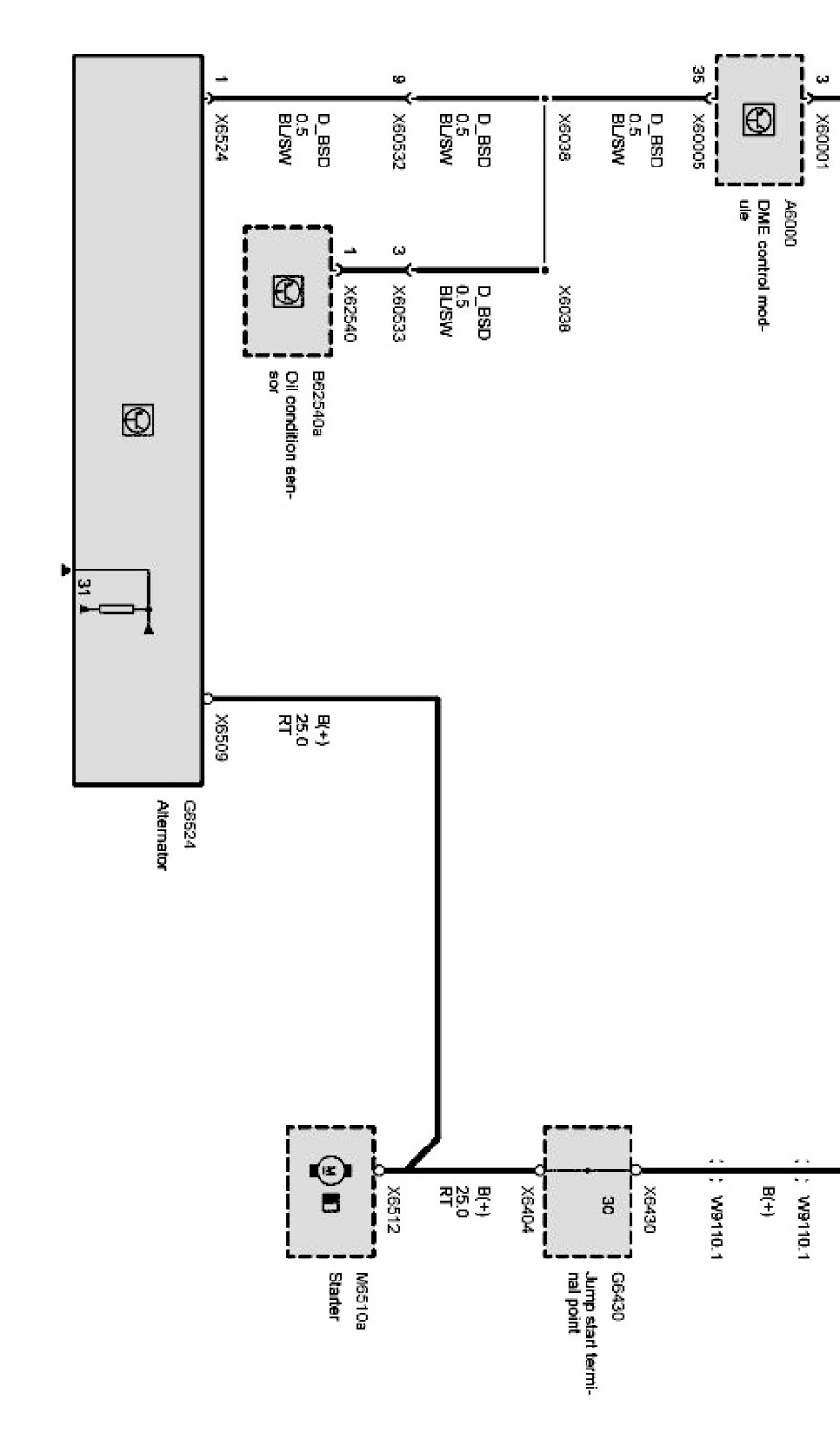

BSD Alternator (As of 03/07)
