Removal and Replacement

17 11 000 Removing and installing radiator (M54)

Warning!
Danger of scalding!
Only perform this work after engine has cooled down.

Drain coolant. Service and Repair
Remove fan cowl. Service and Repair

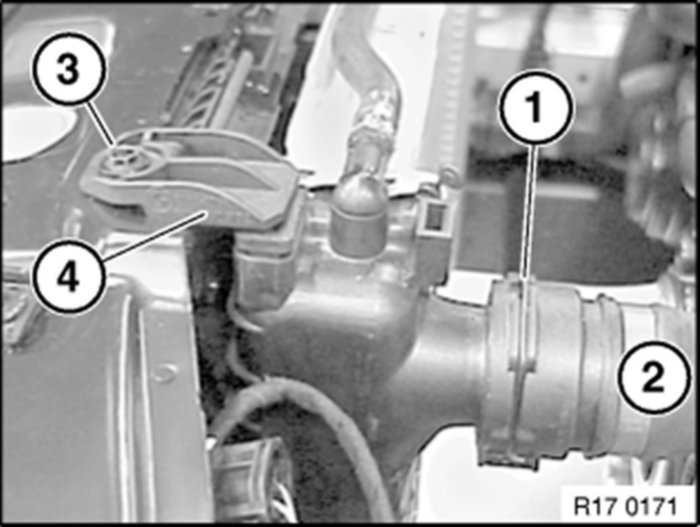

Lever out spring (1).
Remove water hose (2).
Release screws (3) on left and right of radiator.
Remove both brackets (4).

Installation:
Follow instructions for working on cooling system. Service and Repair

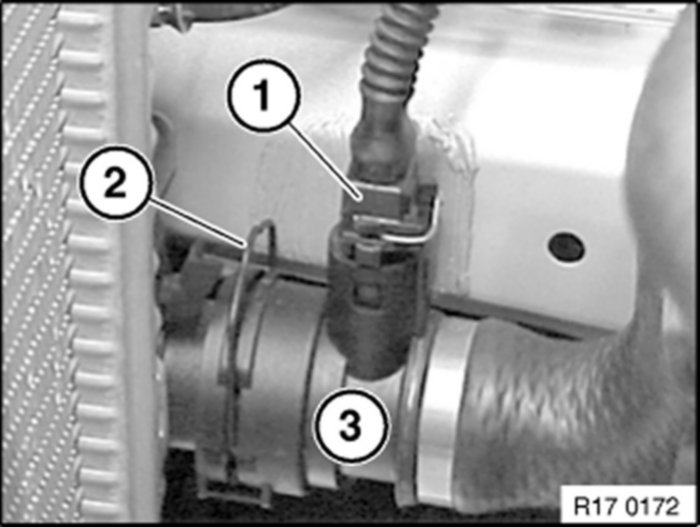

Disconnect plug (1).
Lever out spring (2).
Remove water hose (3).

Installation:
Slide spring (2) back.
Water hose (3) must snap audibly into place.

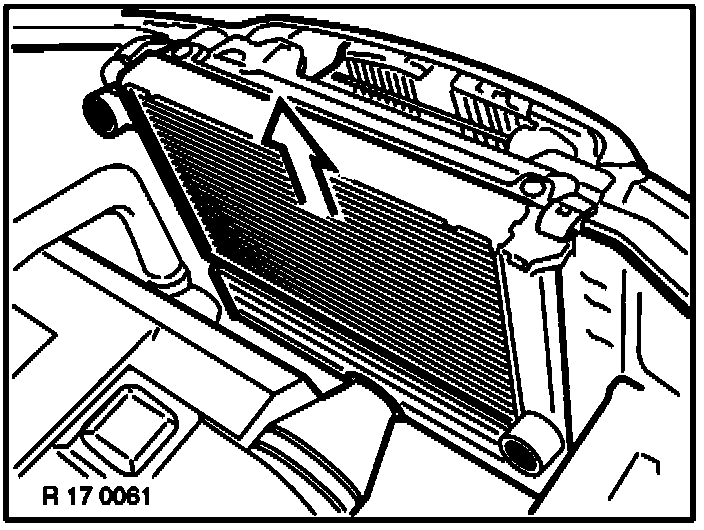

Lift out radiator.





Installation:

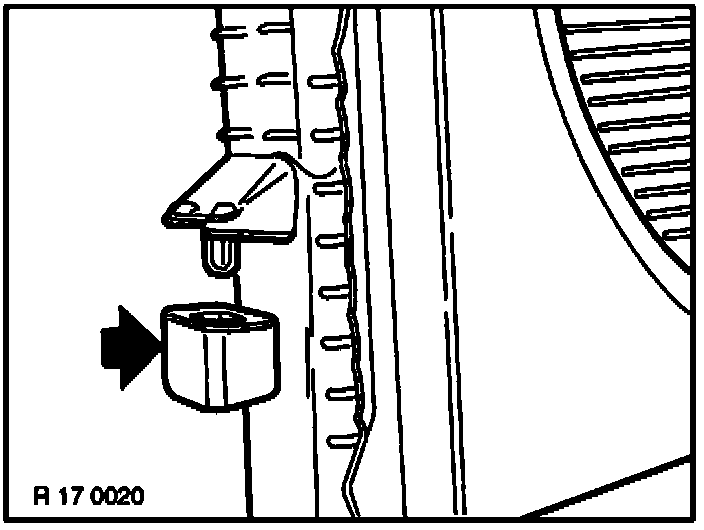

Pay attention to rubber mounts on left and right.





Installation:

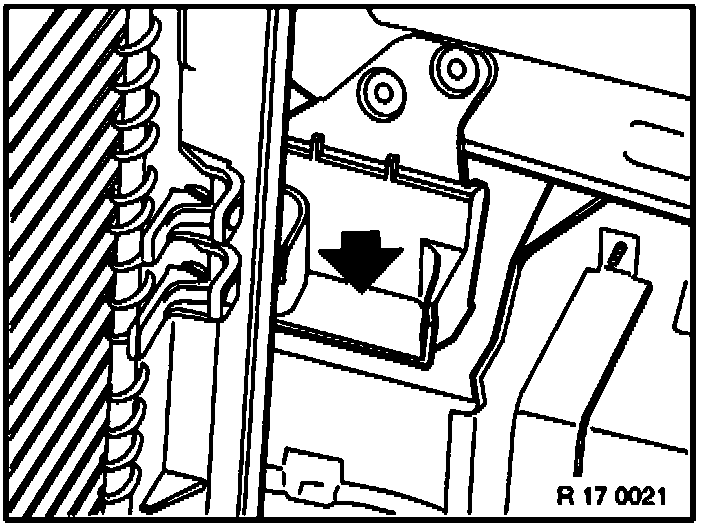

Install radiator with rubber mounts on left and right in bracket.

Top off coolant Service and Repair
Vent cooling system and check for leaks Service and Repair
