320i (E46) (CANADA) L6-2.2L M54
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Displays and Information
>>
Pointer Instruments (E.G. Speedometer, Fuel Gauge...)
>>
Rev Counter
>>

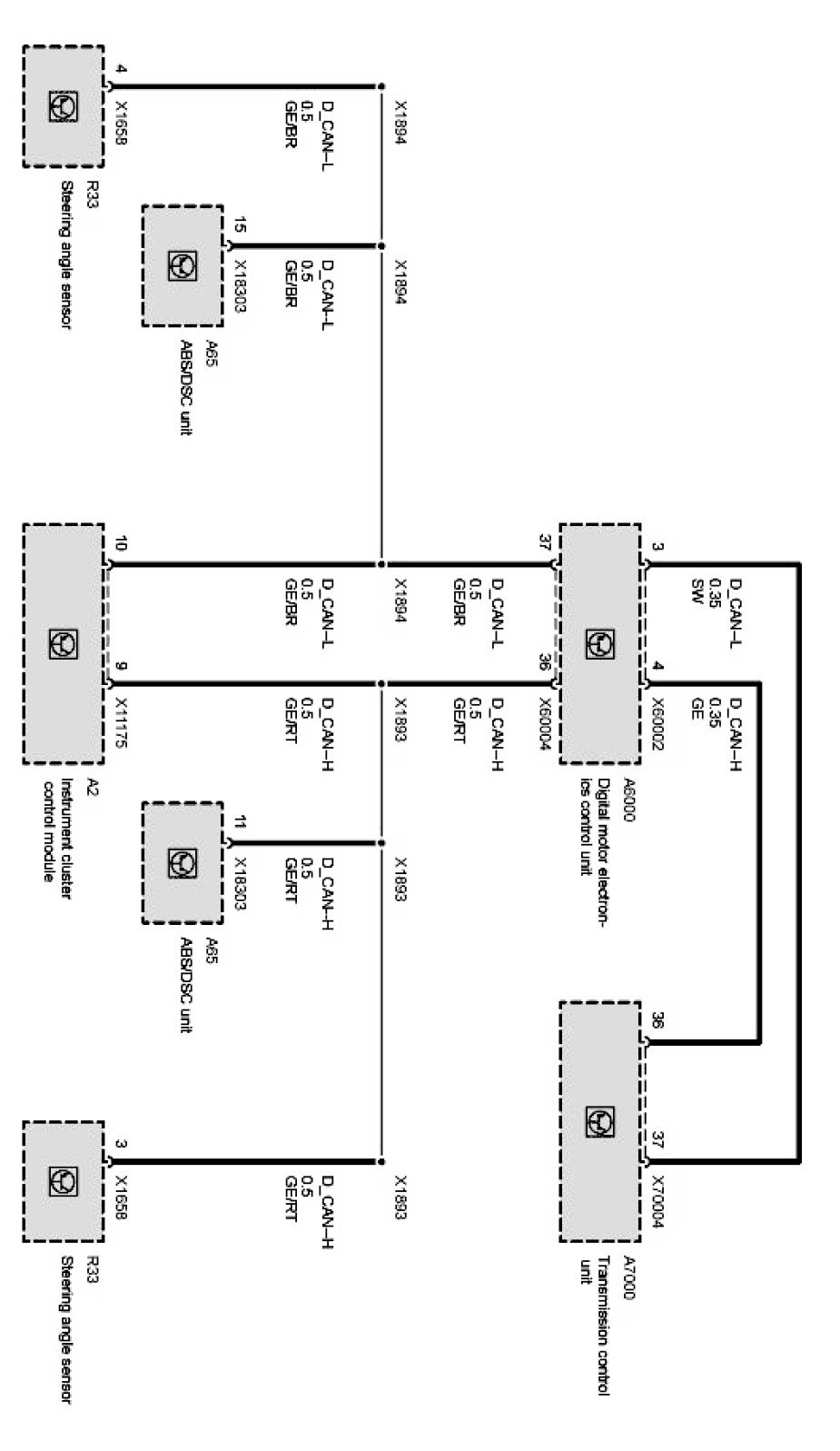

Connector, CAN Bus (With DSC Dynamic Stability Control MK60 W/O DME MSS54 W/O ME9 Up to 09/01)
Connector, CAN Bus (With DSC Dynamic Stability Control MK60 W/O DME MSS54 W/O ME9 Up to 09/01)
Connector, CAN bus:
