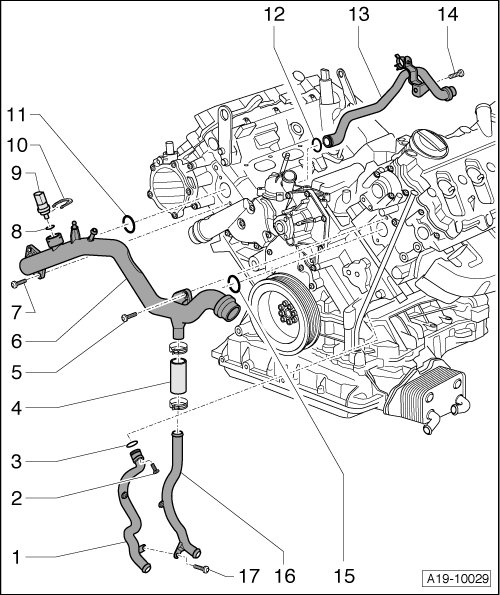

Coolant Pipes Assembly Overview

Coolant Pipes Assembly Overview





1 Left coolant pipe

• Together with => [ (Item 16) Left coolant pipe ] removing and installing, refer to => [ Left Coolant Pipes ] Left Coolant Pipes

2 9 Nm

3 O-ring

• Replace

4 Connecting hose

5 9 Nm

6 Front coolant line

• Removing and installing, refer to => [ Front Coolant Pipe ] Front Coolant Pipe

7 9 Nm

8 O-ring

• Replace

9 Engine Coolant Temperature (ECT) Sensor (G62)

• Removing and installing, refer to => [ Engine Coolant Temperature Sensor ] Service and Repair

10 Retaining clip

11 Seal

• Replace

12 O-ring

• Replace

13 Upper coolant line

• Removing and installing, refer to => [ Upper Coolant Pipe ] Upper Coolant Pipe

14 9 Nm

15 Seal

• Replace

16 Left coolant pipe

• Together with => [ (Item 1) Left coolant pipe ] removing and installing, refer to => [ Left Coolant Pipes ] Left Coolant Pipes

17 9 Nm
