Balance Shaft Assembly Overview

Balance Shaft Assembly Overview

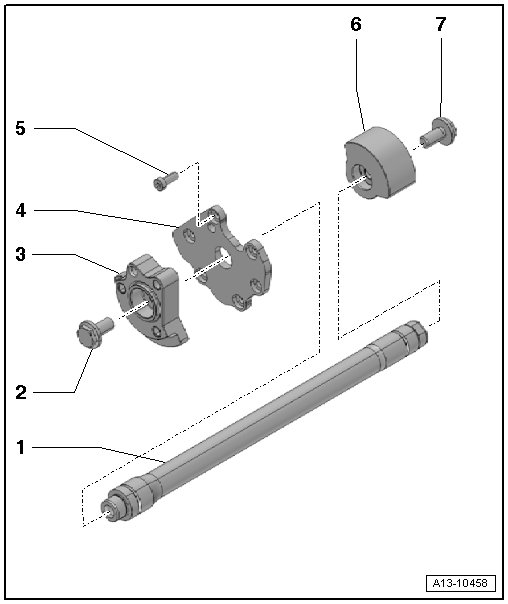

1 Differential shaft

• Removing and installing, refer to => [ Balancing Shaft ] Balancing Shaft

2 60 Nm

• For loosening and tightening, use the Locating Pin (T40116) as a counterholder

3 Balance weight, transmission side

• Can only be positioned one way on balance shaft

4 Bearing end bracket

5 13 Nm

6 Balance weight, belt pulley side

• Can only be positioned one way on balance shaft

7 60 Nm

• For loosening and tightening, use the Locating Pin (T40116) as a counterholder
