Drive Plate Overview

Drive Plate Overview

• For assembly work, secure the engine on the engine and transmission holder (VAS 6095). Refer to => [ Engine, Securing to Engine and Transmission Holder ] Procedures.

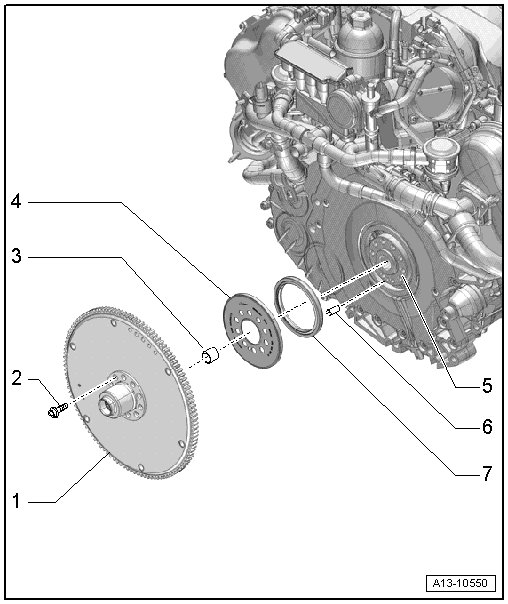

1 Drive Plate

• With the bearing flange

• Check the running surfaces on the bearing flange and the clutch module holes for cracks and signs of wear.

• Removing and installing, refer to => [ Drive Plate ] Drive Plate

2 Bolt

• 60 Nm plus an additional 90° turn

• Replace

3 Needle Bearing

• Only for vehicles with manual transmissions

• Installed position: Closed side faces the engine

• Removing and installing, refer to => [ Needle Bearing at Drive Plate, Manual Transmission ] Service and Repair

4 Sensor Wheel

• For the Engine Speed (RPM) sensor (G28)

5 Crankshaft

6 Alignment Bushing

7 Crankshaft Shaft Seal, Transmission Side

• Removing and installing, refer to => [ Crankshaft Seal, Transmission Side ] Service and Repair
