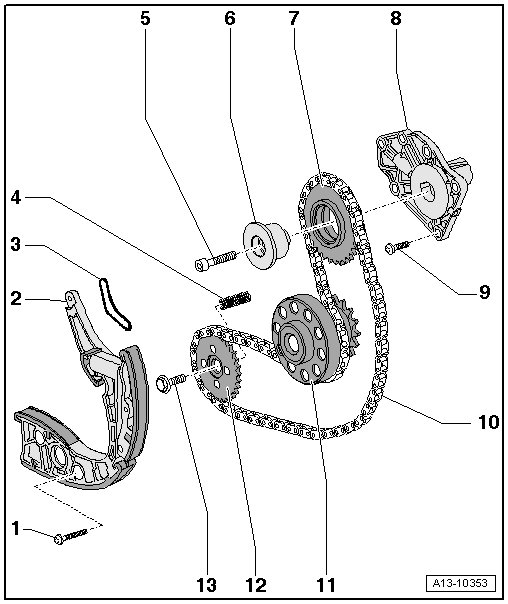

Power Take-Off Drive Chain Assembly Overview

Power Take-Off Drive Chain Assembly Overview





1 Bolt

• Replace

• 5 Nm plus an additional 90° turn

2 Chain tensioner

• With glide track

3 Gasket

• Replace

4 Spring

5 Bolt

• 42 Nm

6 Pivot pin for idler sprocket

7 Idler sprocket for chain for power take-off

8 Idler sprocket mounting bracket

9 Bolt

• Replace

• 5 Nm plus an additional 90° turn

10 Power take-off drive chain

• Before removing, mark the direction of rotation with paint

• Removing and installing, refer to => [ Power Take-Off Drive Chain ] Power Take-Off Drive Chain

11 Crankshaft

12 Drive sprocket for power take-off

13 Bolt

• 64 Nm
