Drive Plate Assembly Overview

Drive Plate, Assembly Overview

• For assembly work, secure the engine on the engine and transmission holder => [ Engine and Transmission, Securing to Holder ] Engine and Transmission, Securing to Holder.

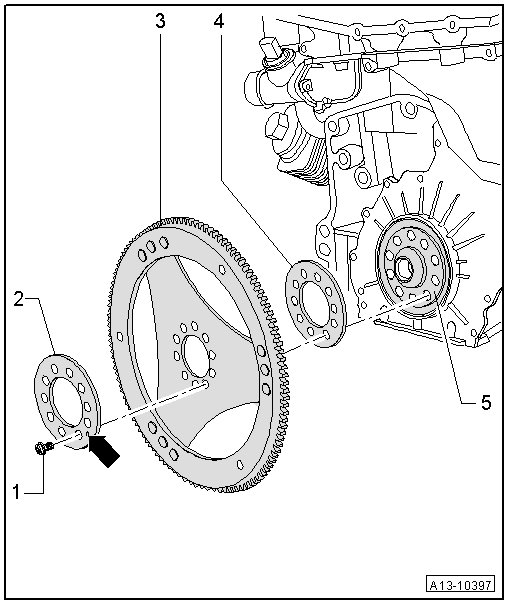

1 Drive plate

• Removing and installing => [ Drive Plate ] Drive Plate.

2 Washer

• Installed location: Dimple - arrow - faces toward transmission side

3 Bolt

• Replace

• 60 Nm + 1/4 additional turn (90°).

4 Crankshaft

5 Spacer washer

• Installed location: One hole offset from center
