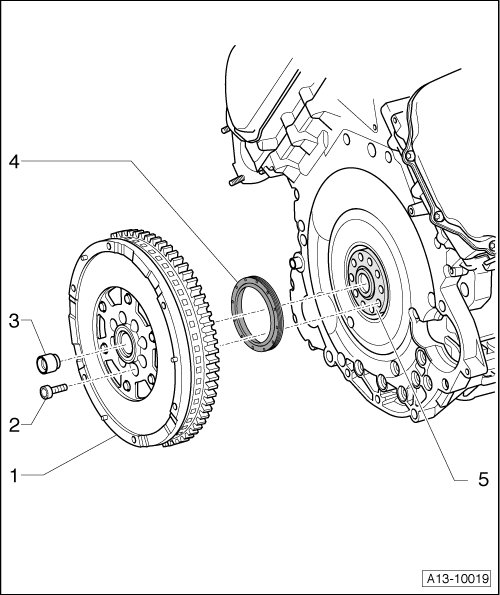

Dual Mass Flywheel Component Overview

Dual Mass Flywheel Component Overview

• Servicing clutch.





1 Dual mass flywheel

• Removing and installing, refer to => [ Dual Mass Flywheel ] Dual Mass Flywheel

2 60 Nm plus an additional 90° (1/4 turn)

• Replace

3 Needle bearing

• Only on vehicles with manual transmission

• Pulling out and driving in, refer to => [ Needle Bearing on Dual Mass Flywheel ] Needle Bearing on Dual Mass Flywheel

4 Shaft seal for crankshaft -timing chain side-

• Replacing, refer to => [ Crankshaft Seal, Timing Chain Side, Replacing ] Crankshaft Seal, Timing Chain Side, Replacing.

5 Crankshaft
