Diagnostic Chart - Channels 9 - 10
Diagnostic Chart - Channels 9 - 10

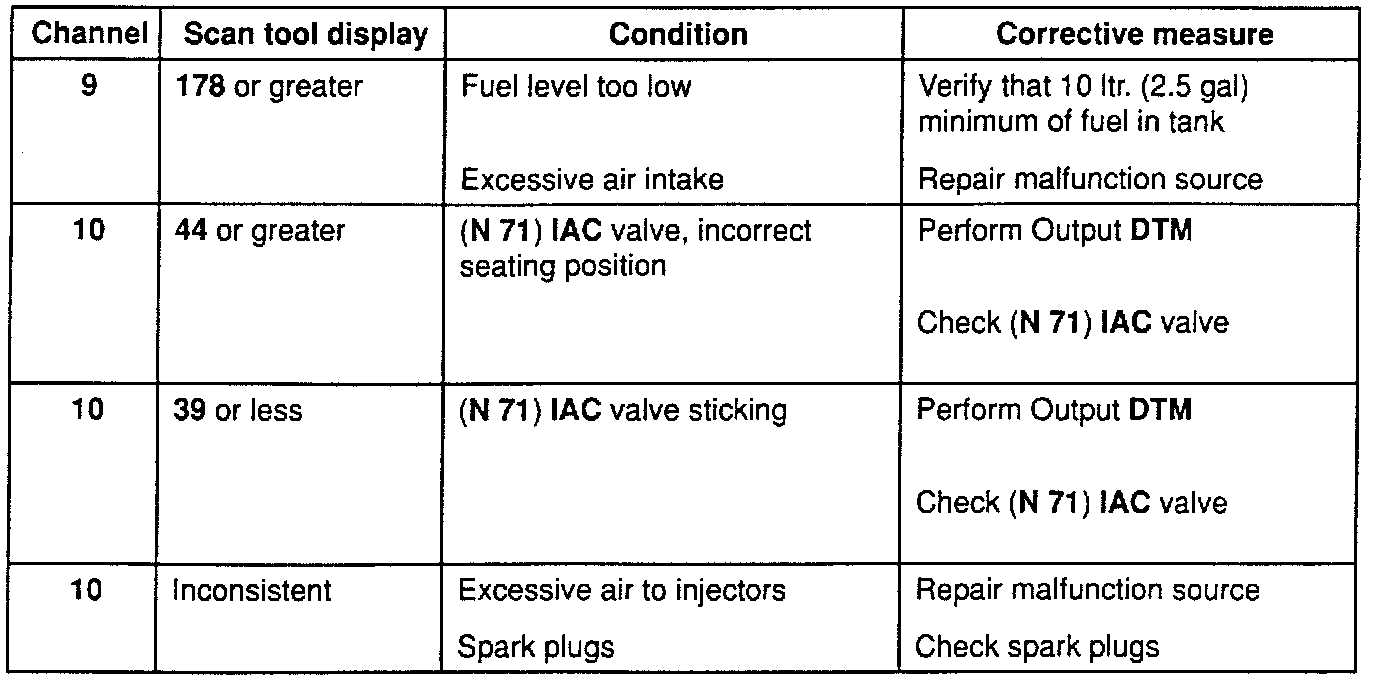

Measuring Value Block Display Chart:
