Audi
>>
1993
>>
V8 Quattro V8-4.2L (ABH)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Scan Tool Testing
>>
Basic Setting (Function 04)
>>
Basic Engine Setting Diagnostic Charts
>>
Diagnostic Chart - Channels 2 - 4

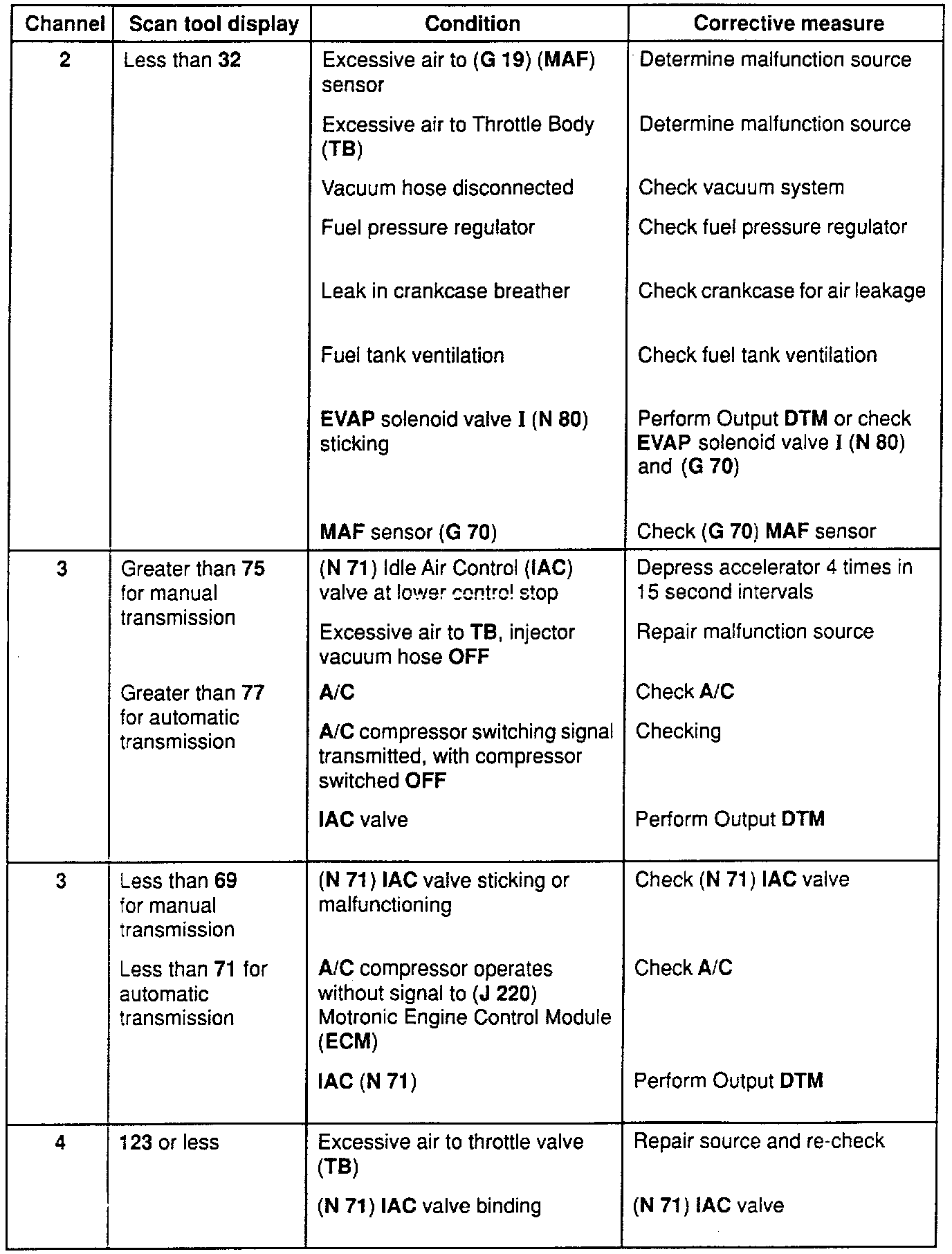

Diagnostic Chart - Channels 2 - 4
Measuring Value Block Display Chart:
