Home >> Audi >> 1992 >> V8 Quattro V8-4.2L (ABH) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Diagram Information and Instructions >> Diagrams By Track Number >> Tracks 524 - 533

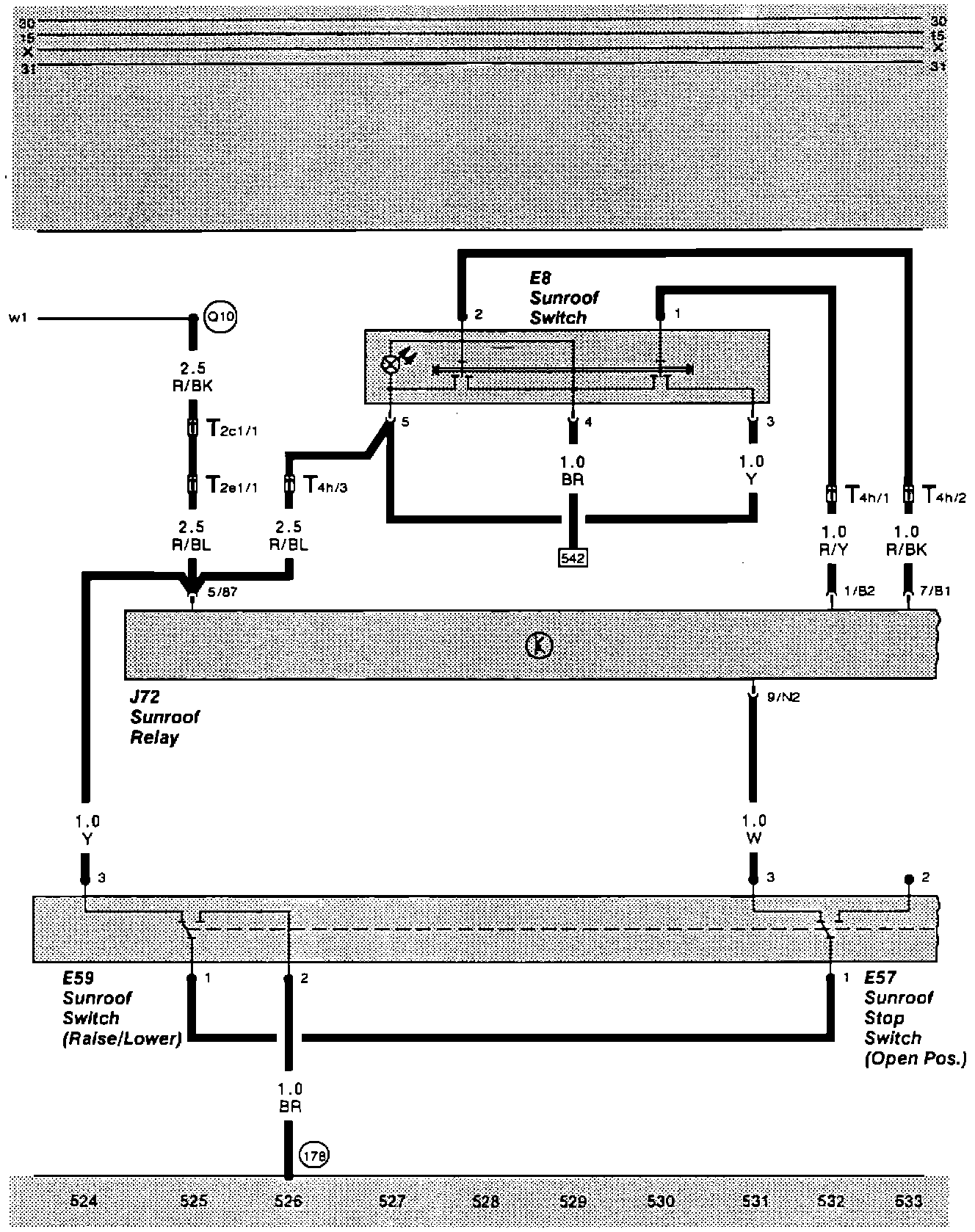

Tracks 524 - 533

Tracks 524 - 533:
