Curiosii for ever!: Car repair manuals for everyone.
Home >> Audi >> 1992 >> V8 Quattro V8-4.2L (ABH) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Diagram Information and Instructions >> Diagrams By Track Number >> Tracks 283 - 295

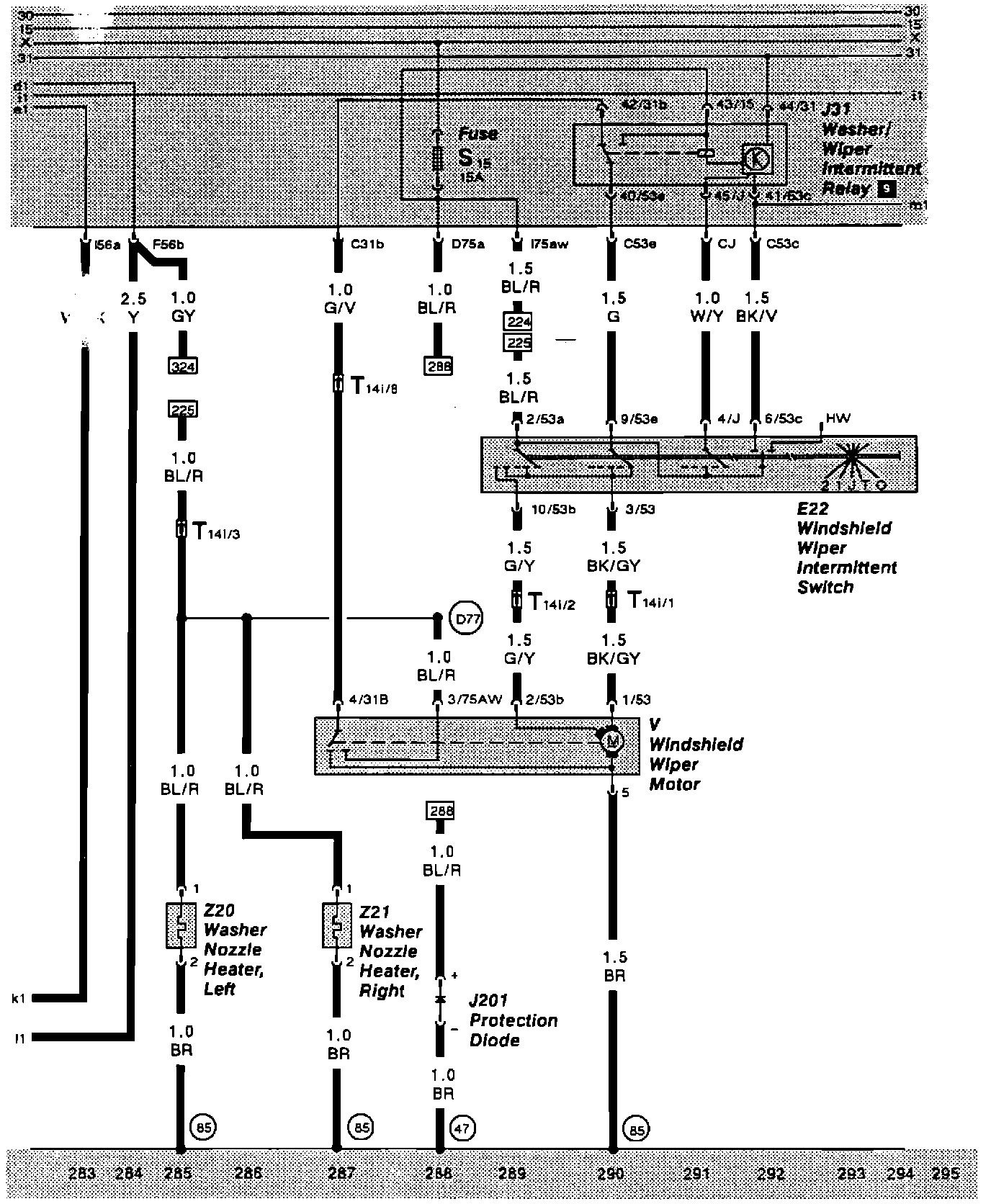

Tracks 283 - 295

Tracks 283 - 295:
