Diagram Information and Instructions
>>
Diagrams By Track Number
>>

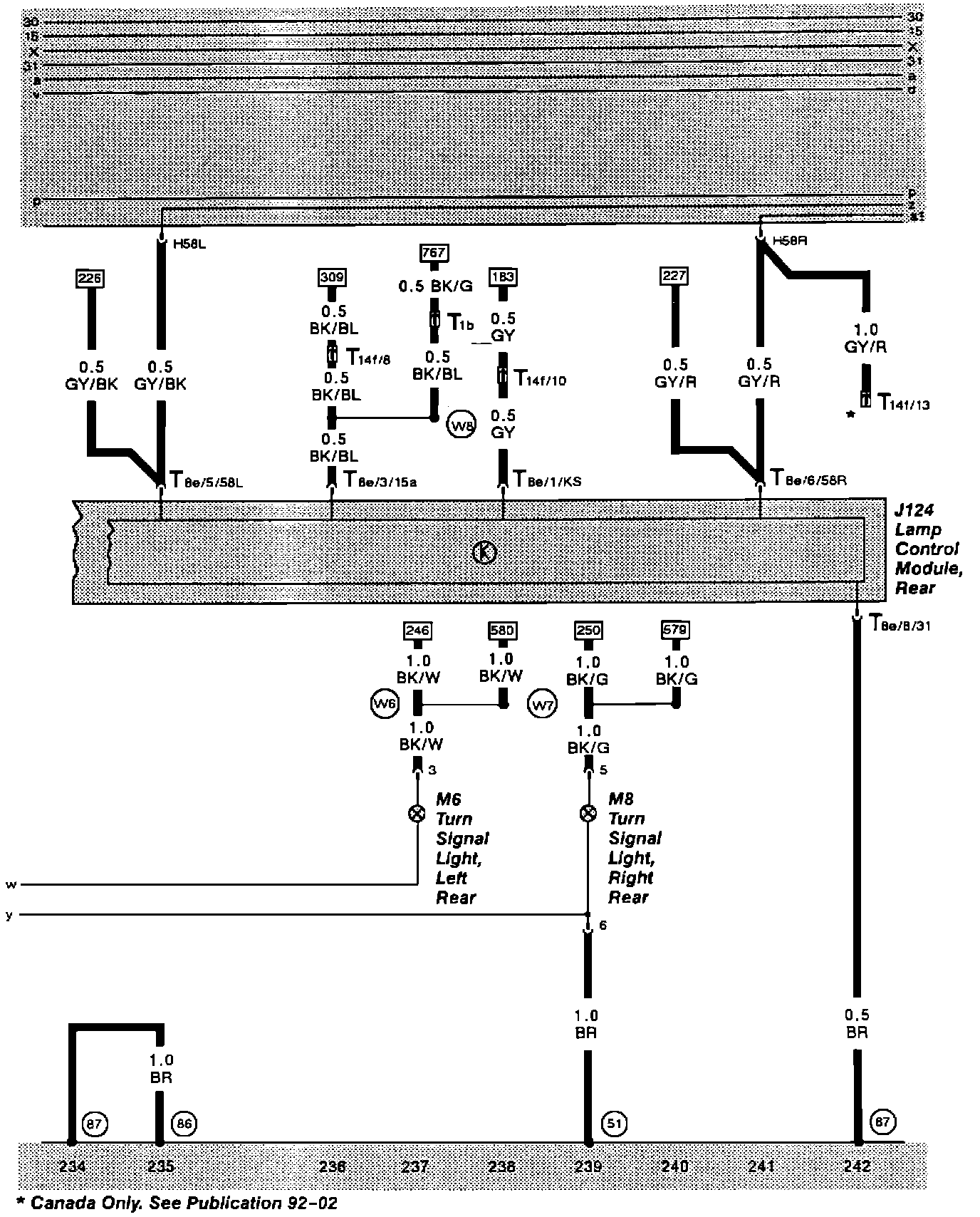

Tracks 234 - 242
Tracks 234 - 242
Tracks 234 - 242:
