Diagnostic Chart - Channels 1 - 2
Diagnostic Chart - Channels 1 - 2

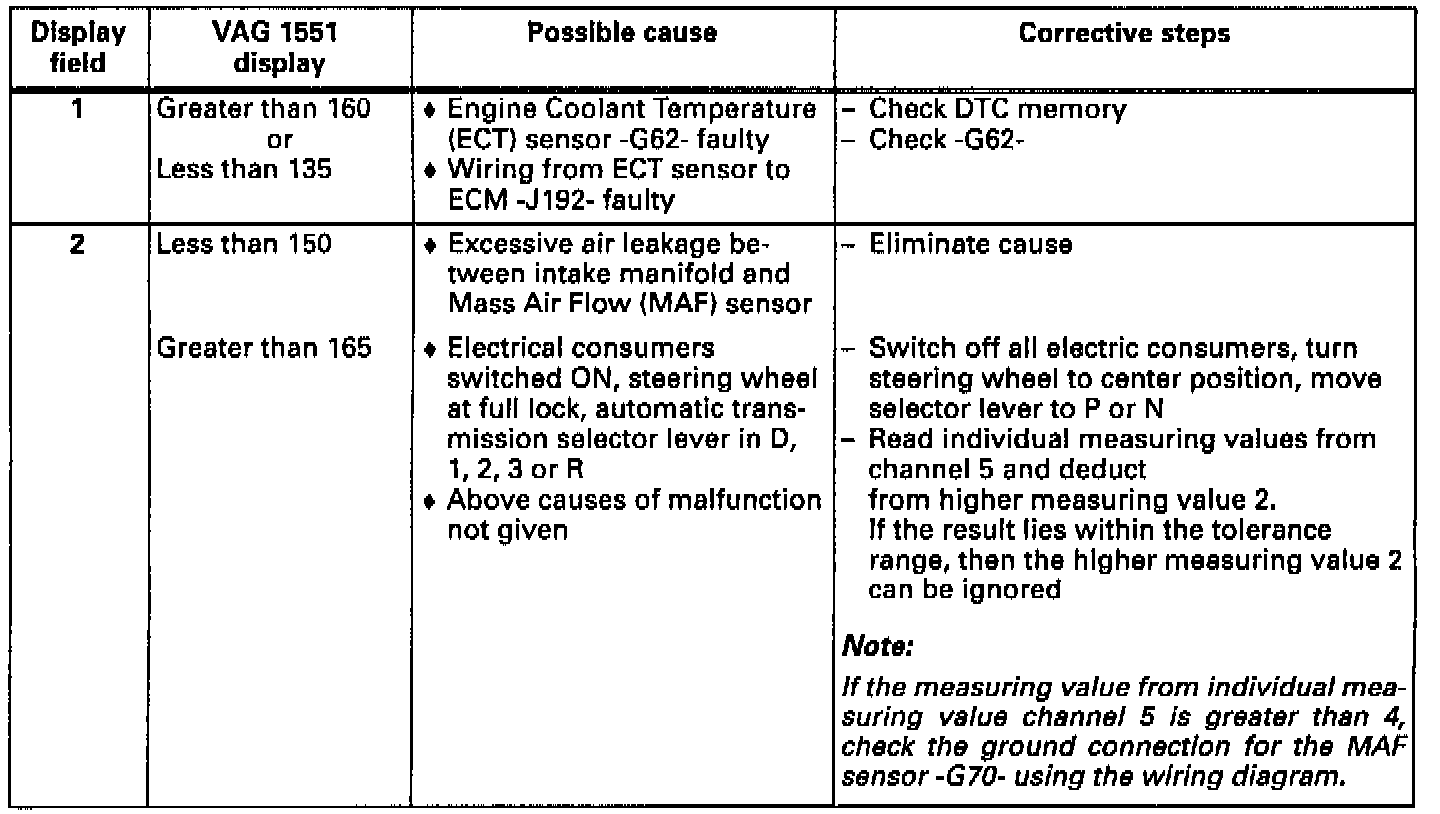

Diagnostic Chart - Channels 1 - 2:
