Engine Control Module
>>
Diagrams
>>
Diagram Information and Instructions
>>
Diagrams By Track Number
>>
Track 67 Thru 80
Track 67 Thru 80

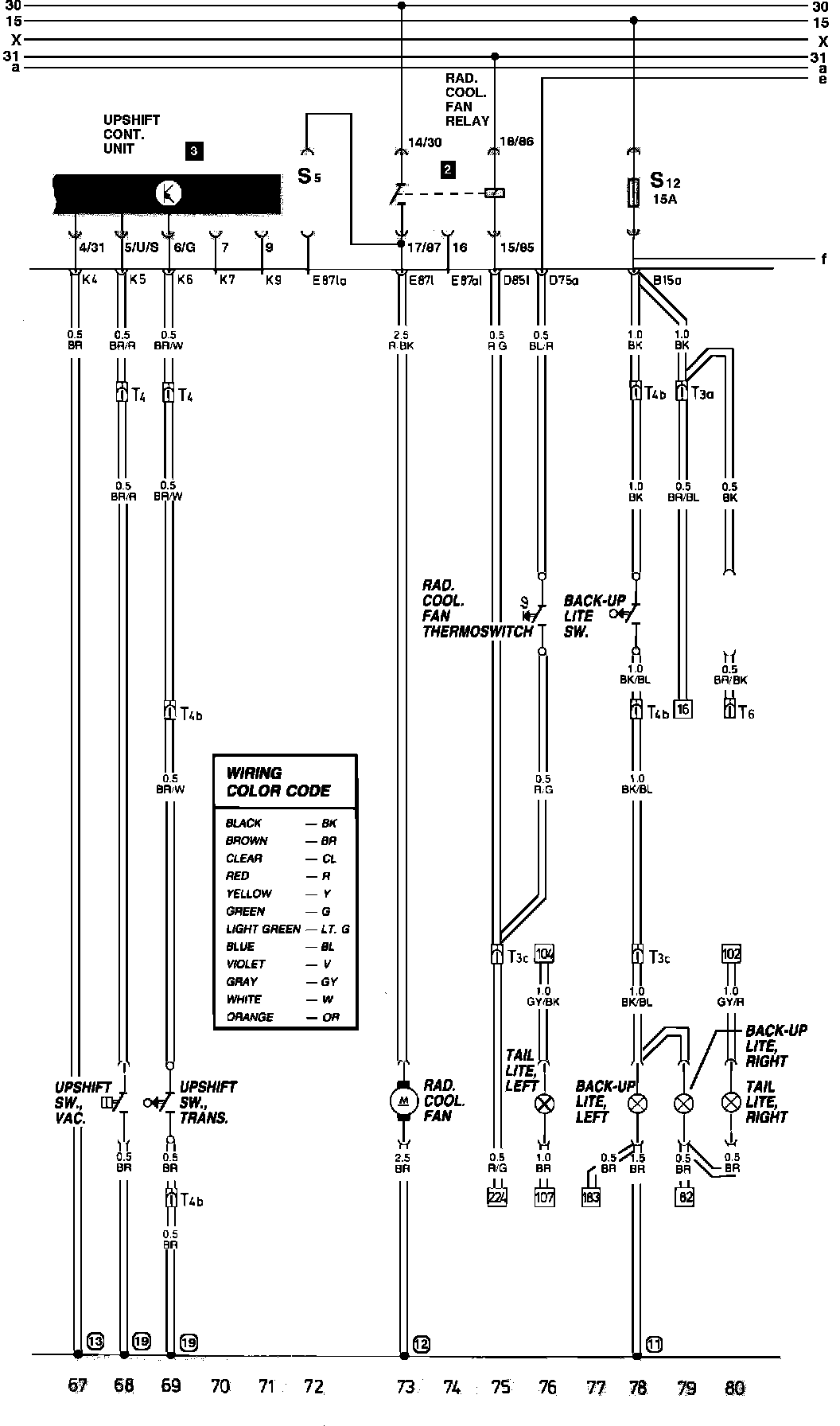

Main Wiring Diagram:
