Engine Control Module
>>
Diagrams
>>
Diagram Information and Instructions
>>
Diagrams By Track Number
>>
Track 50 Thru 66
Track 50 Thru 66

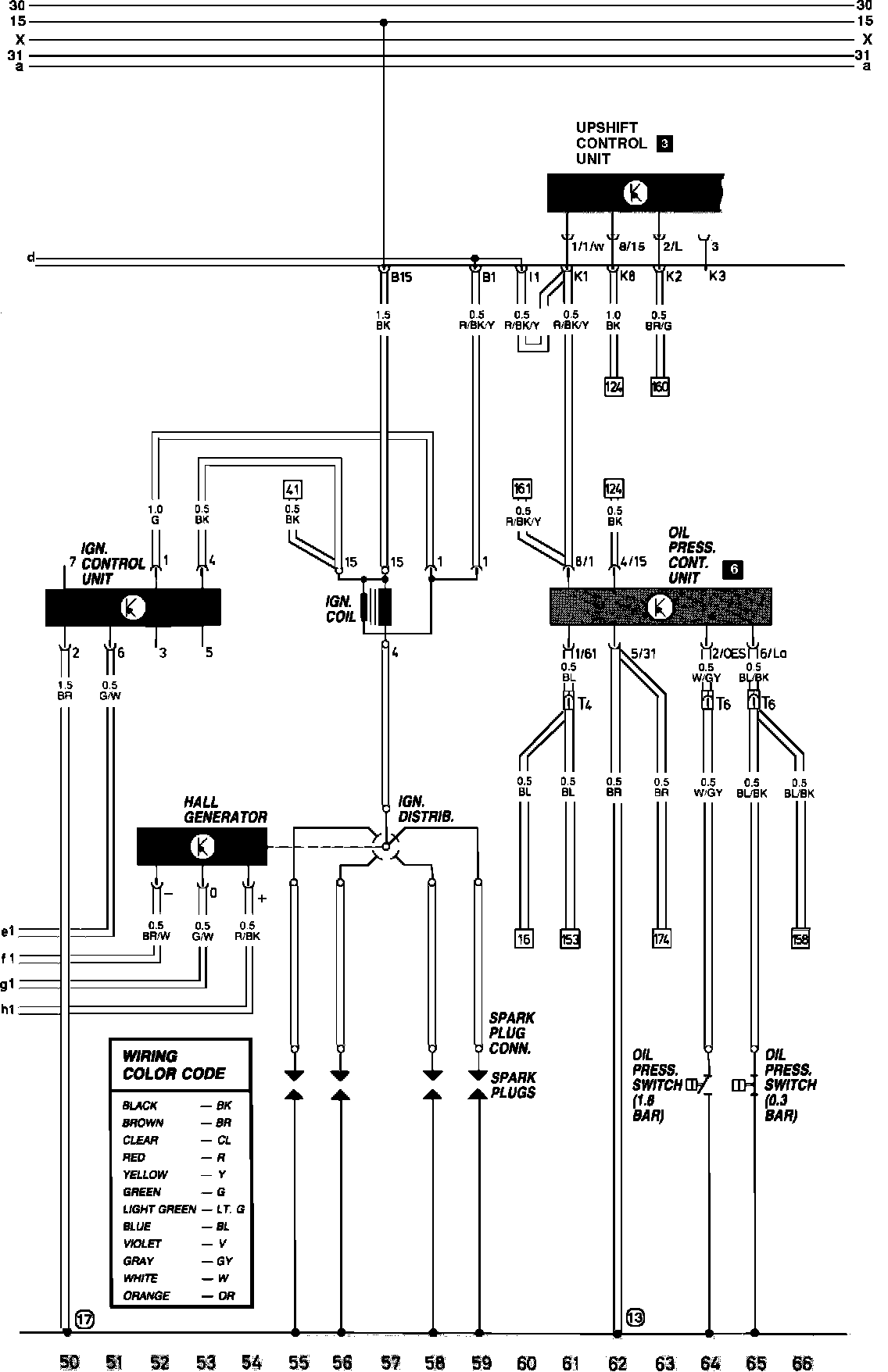

Main Wiring Diagram:
