Diagram Information and Instructions
>>
Diagrams By Track Number
>>
Track 101 Thru 116
Track 101 Thru 116

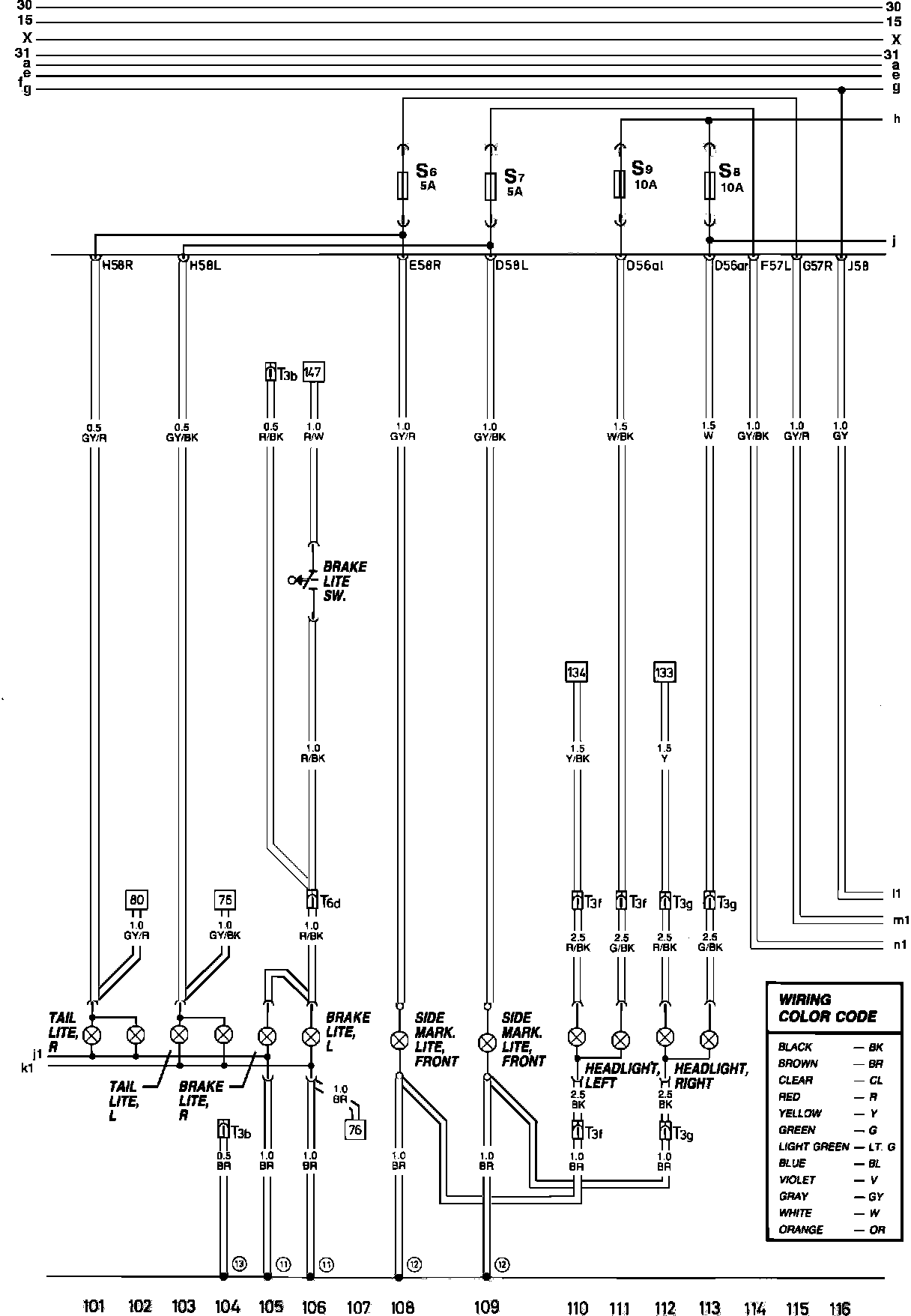

Main Wiring Diagram:
