Symptom Troubleshooting Index

Symptom Chart
Listed above are symptoms and probable causes for problems that DO NOT cause the Malfunction indicator Lamp (MIL) to come on. If the MIL was reported on, go to How to Display and Read Diagnostic Trouble Codes. Reading Diagnostic Trouble Codes
Troubleshoot each probable cause in the order listed (from left to right) until the symptom is eliminated.
The probable cause and troubleshooting reference can be found below.
Other Probable Causes for an engine that will not start:
- Compression
- Intake air leakage
- Engine locked up
- Timing belt
- Starting system
- Overheating
- Battery

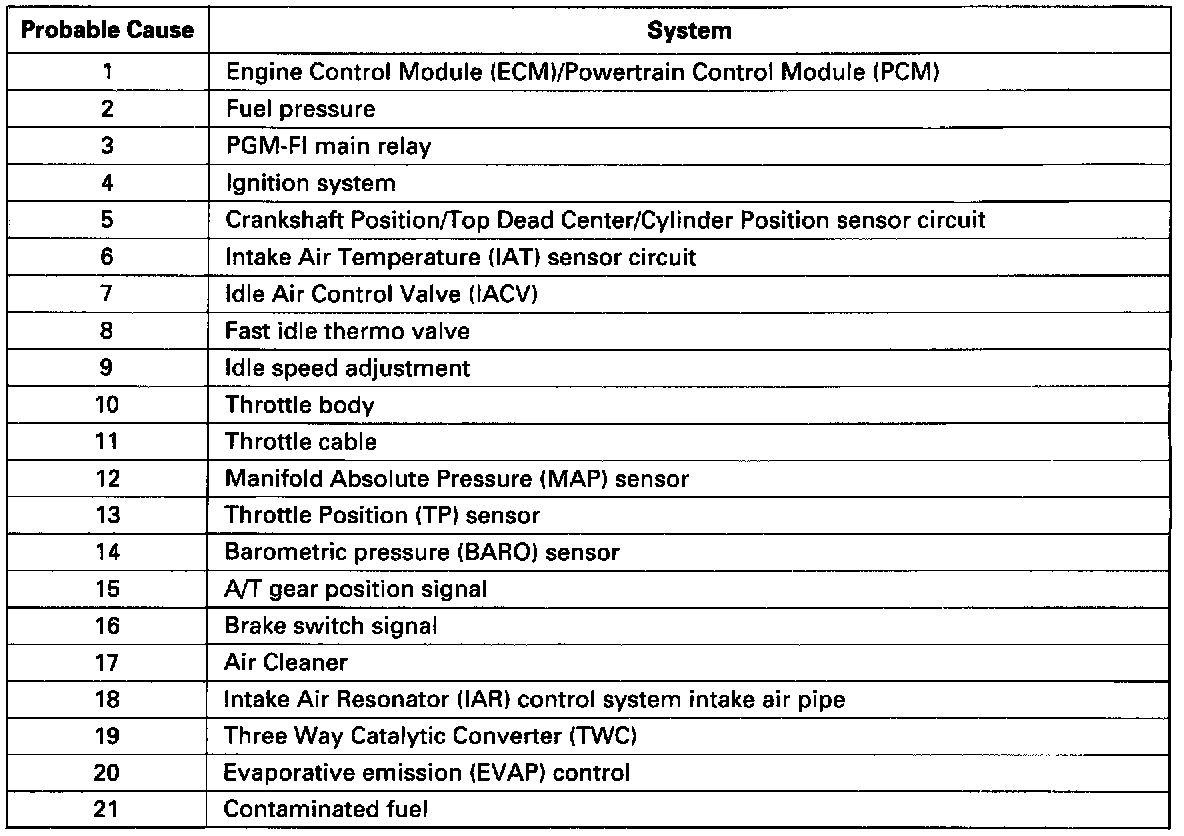

Probable Cause List
