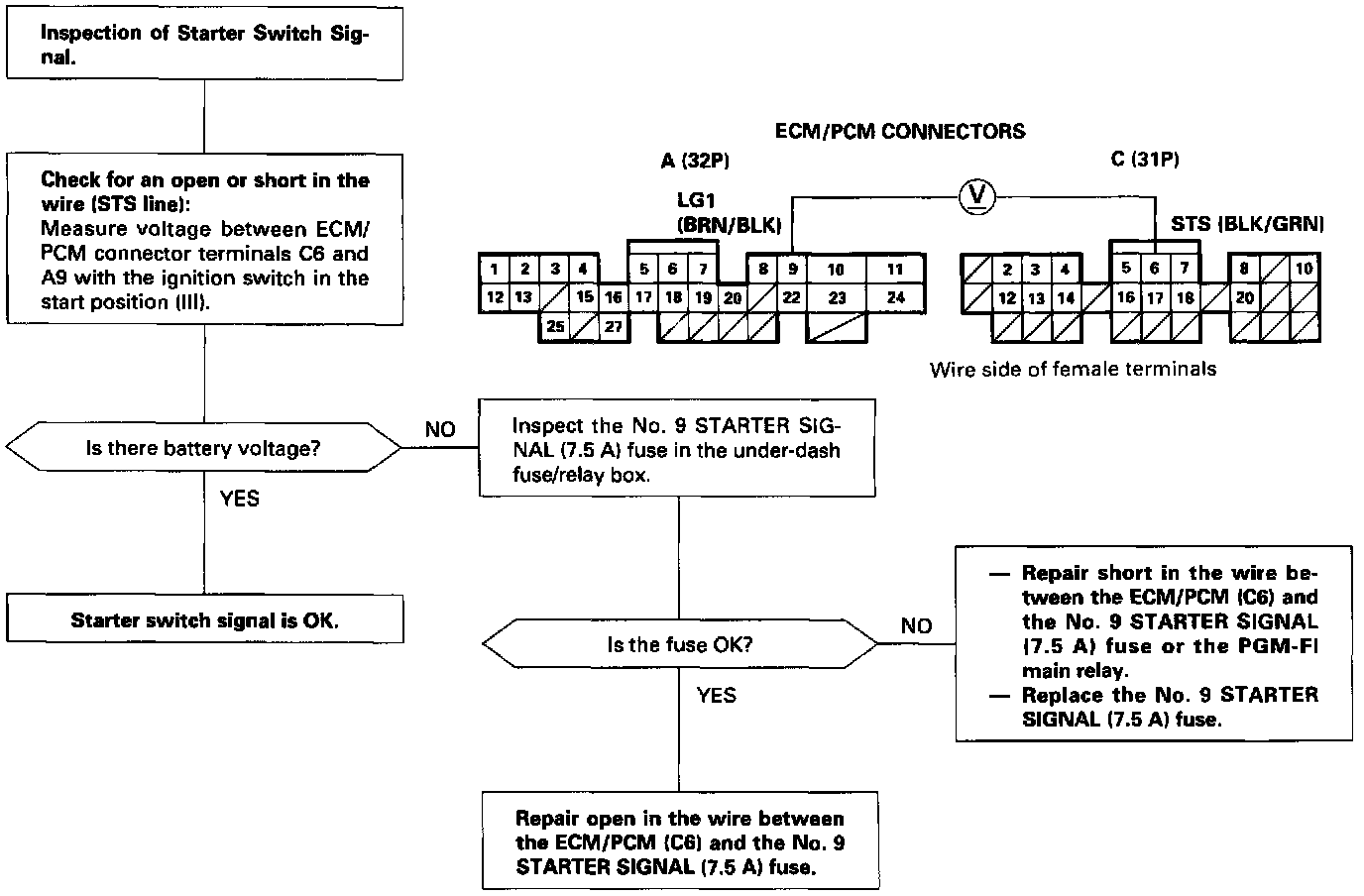

Starter Switch Signal Circuit Troubleshooting
Starter Switch Signal Circuit Troubleshooting
This signals the ECM-
PCM
when the engine is cranking
NOTE
:
-
M/T: Clutch pedal must be depressed.
-
A/T: Transmission in [N] or [P] position.
