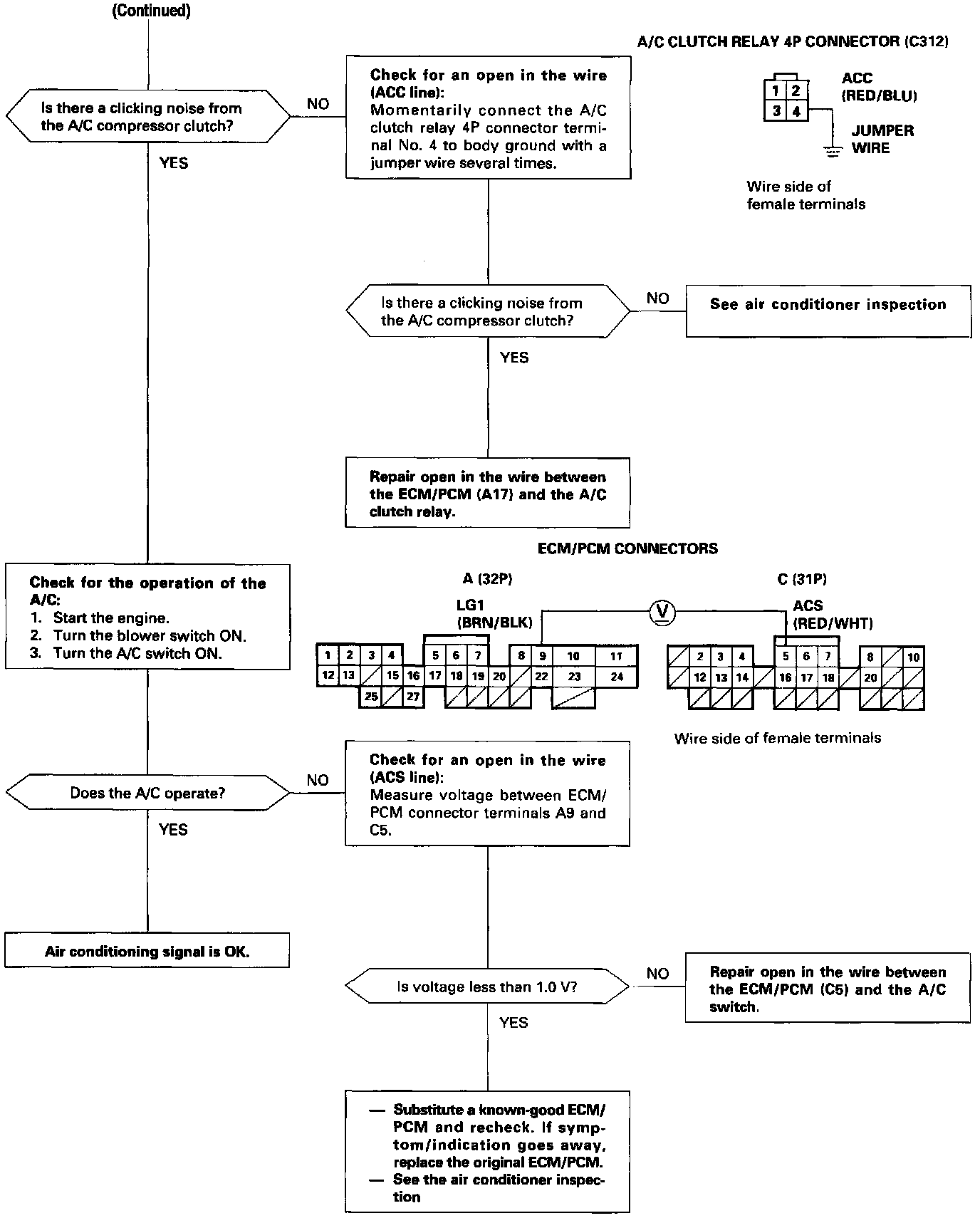

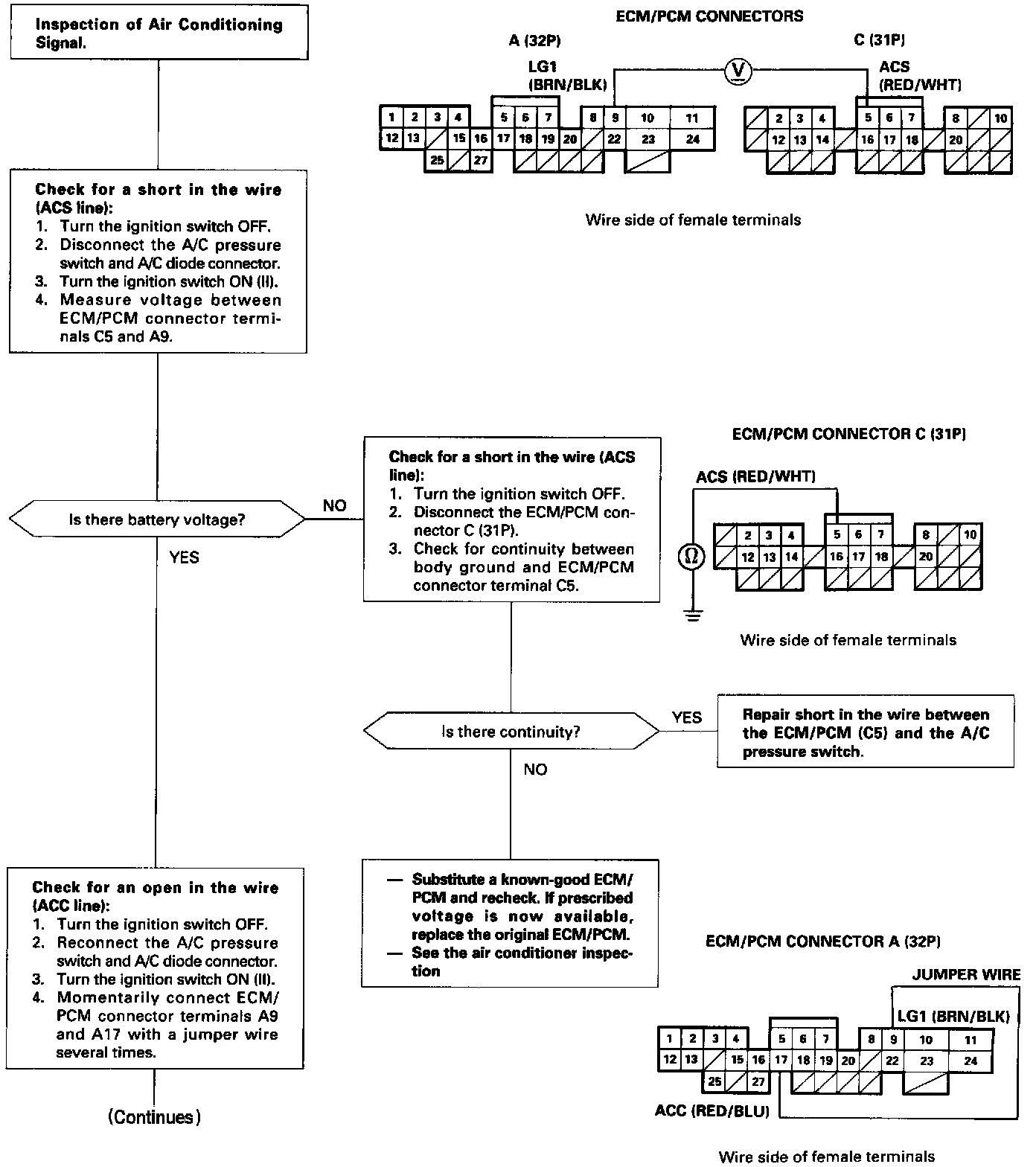

A/C Signal Circuit Troubleshooting








This signals the ECM/PCM when there is a demand for cooling from the air conditioning system.
