Automatic Transaxle (A/T) Gear Position Signal
>>

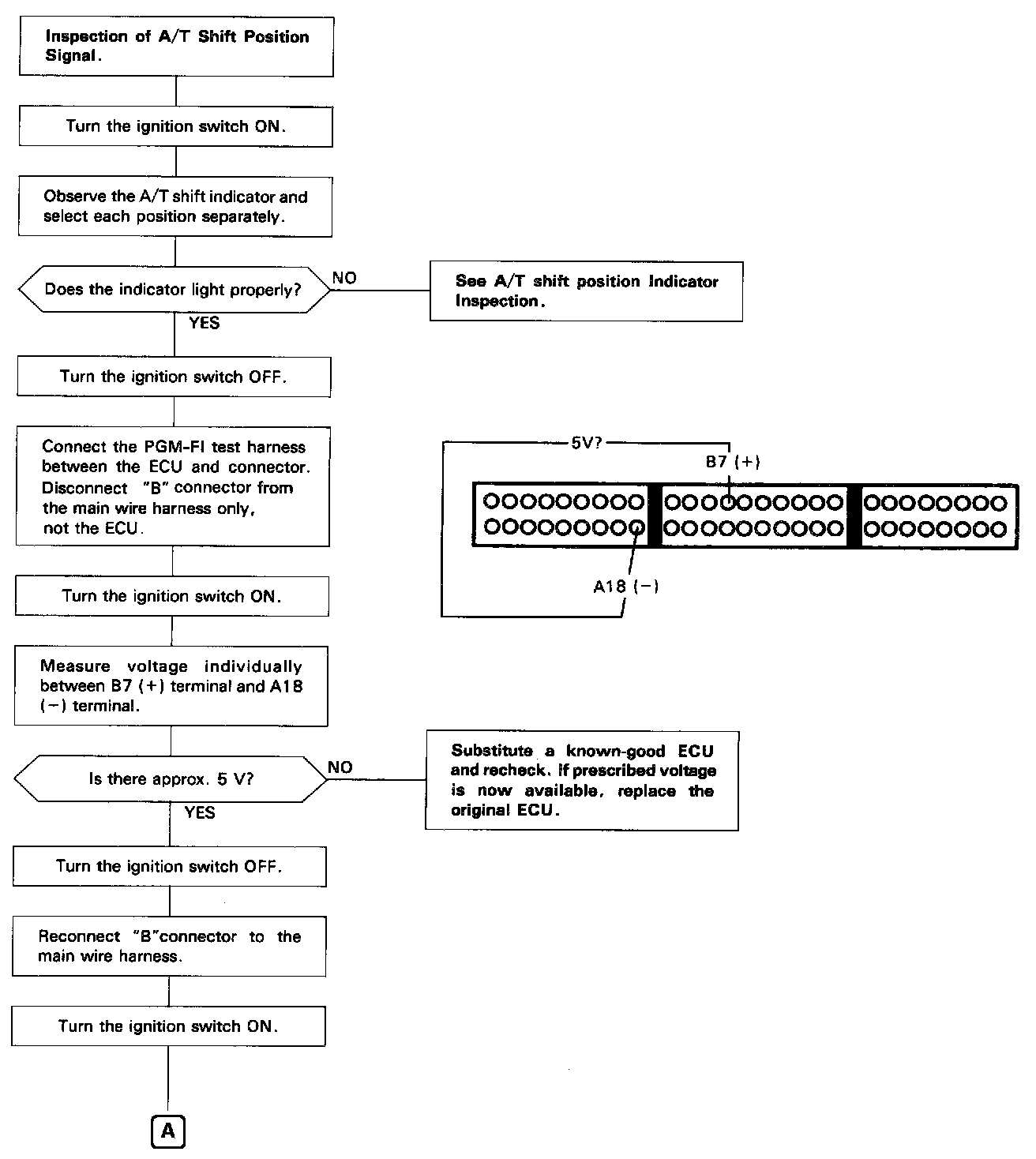

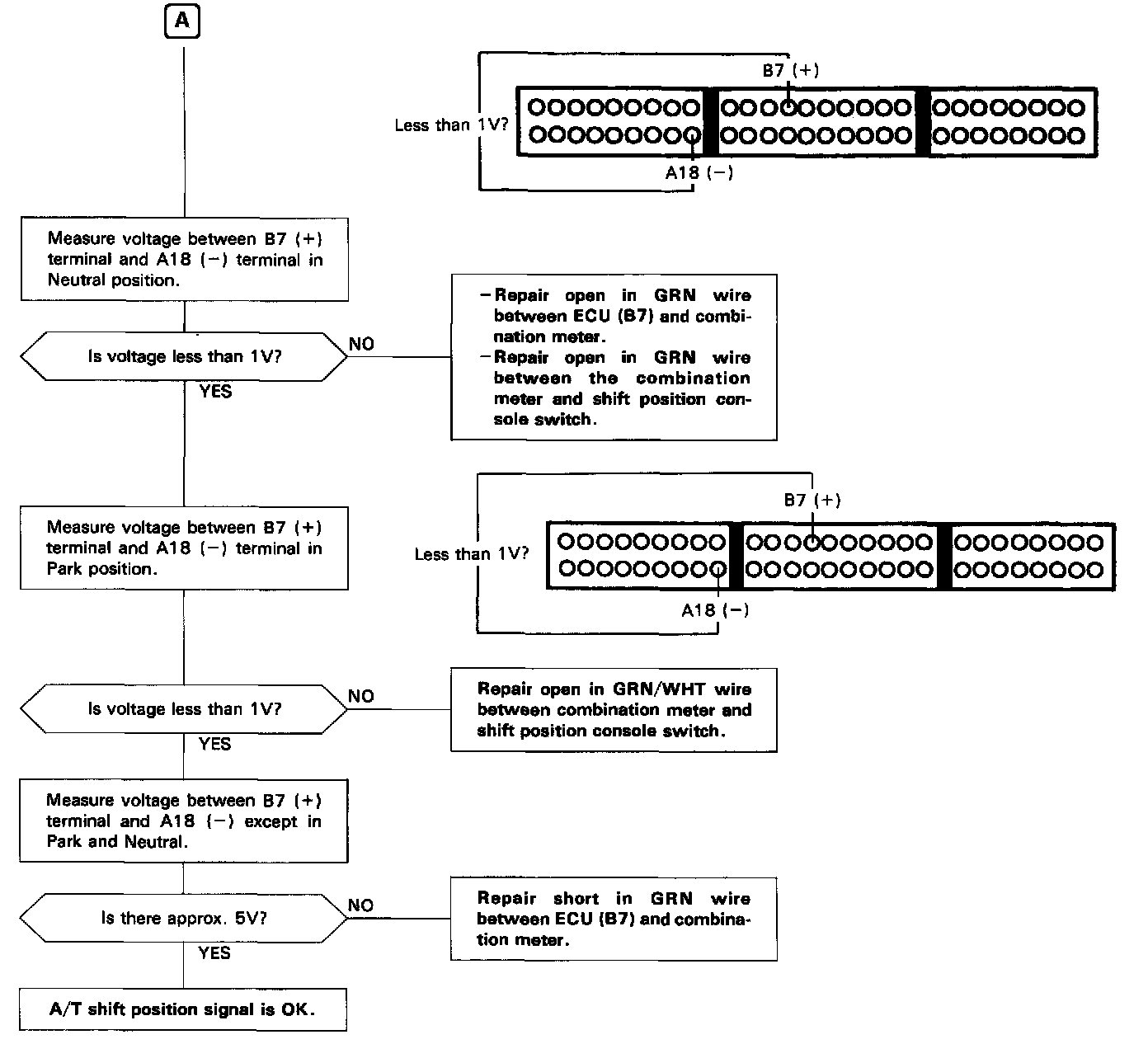

Troubleshooting Flowchart
Troubleshooting Flowchart
This signals the
PGM-FI ECU
when the transmission is in Neutral or Park.
TROUBLESHOOTING FLOWCHART
