Automatic Transaxle (A/T) Gear Position Signal
>>
Troubleshooting Flowchart
Troubleshooting Flowchart
This signals the
PGM-FI ECU
when the transmission is in Neutral or Park, D3 or D4.

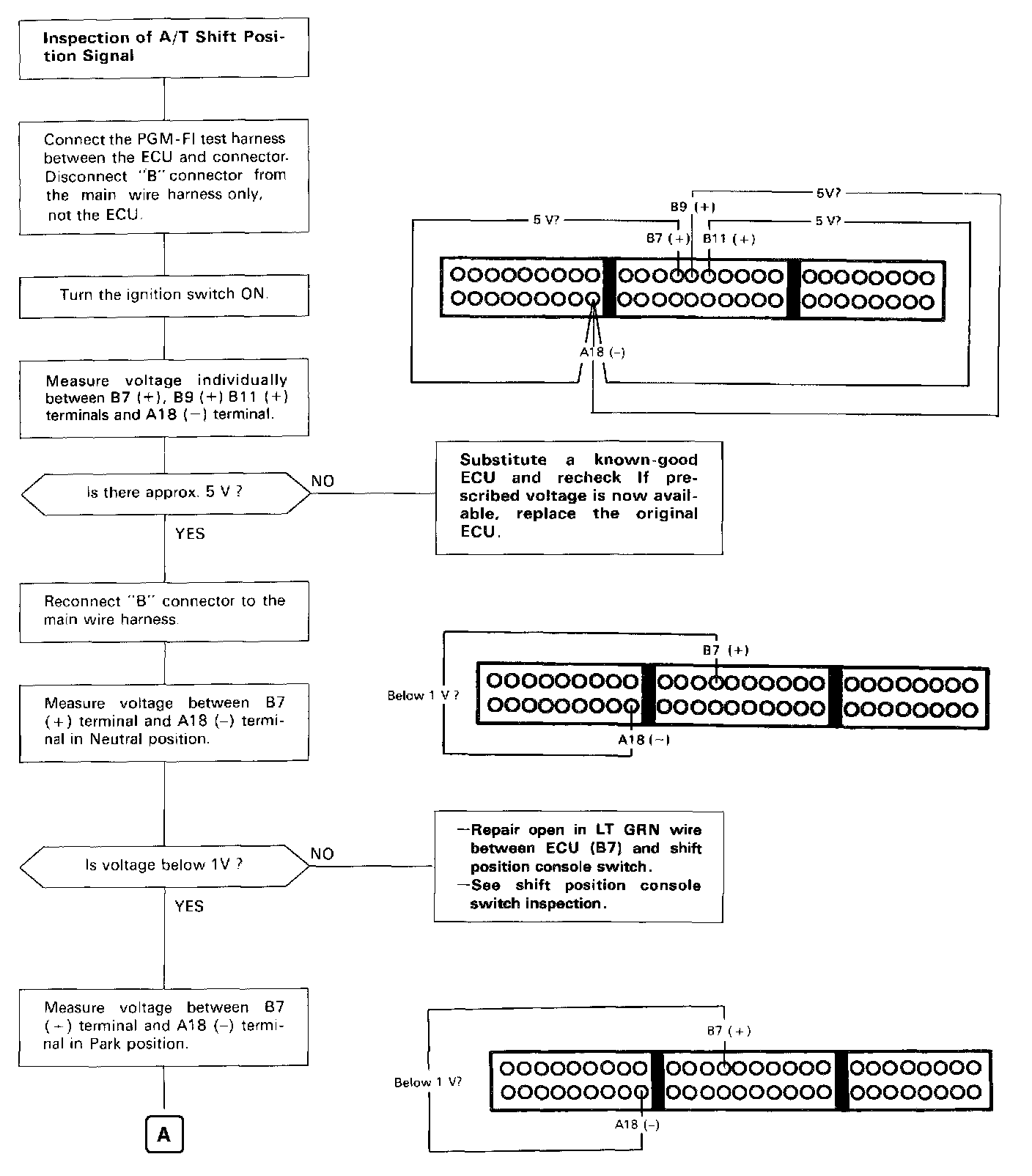

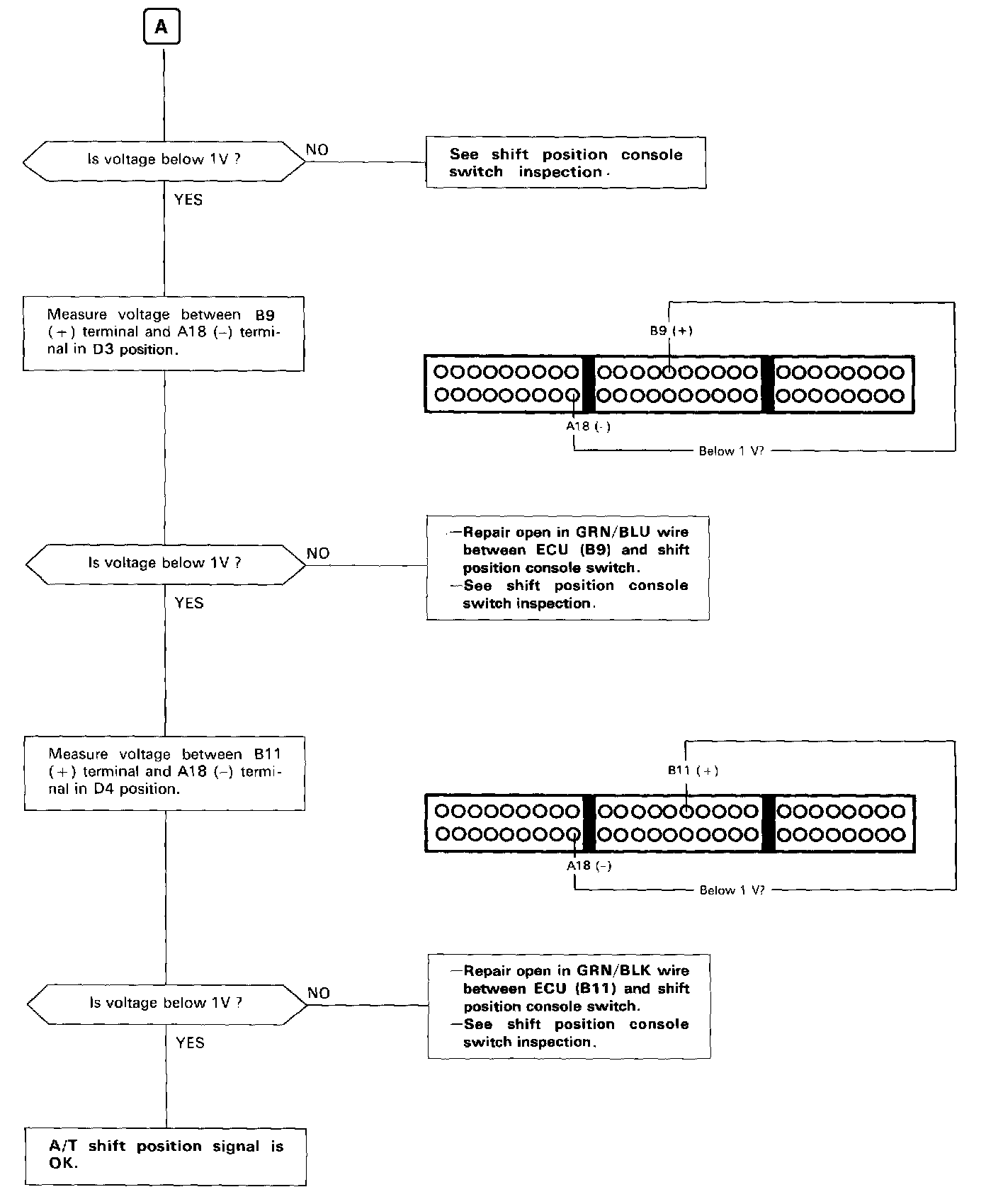

TROUBLESHOOTING FLOWCHART
