Yugo
>>
1991
>>
Yugo L4-1300cc 1.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

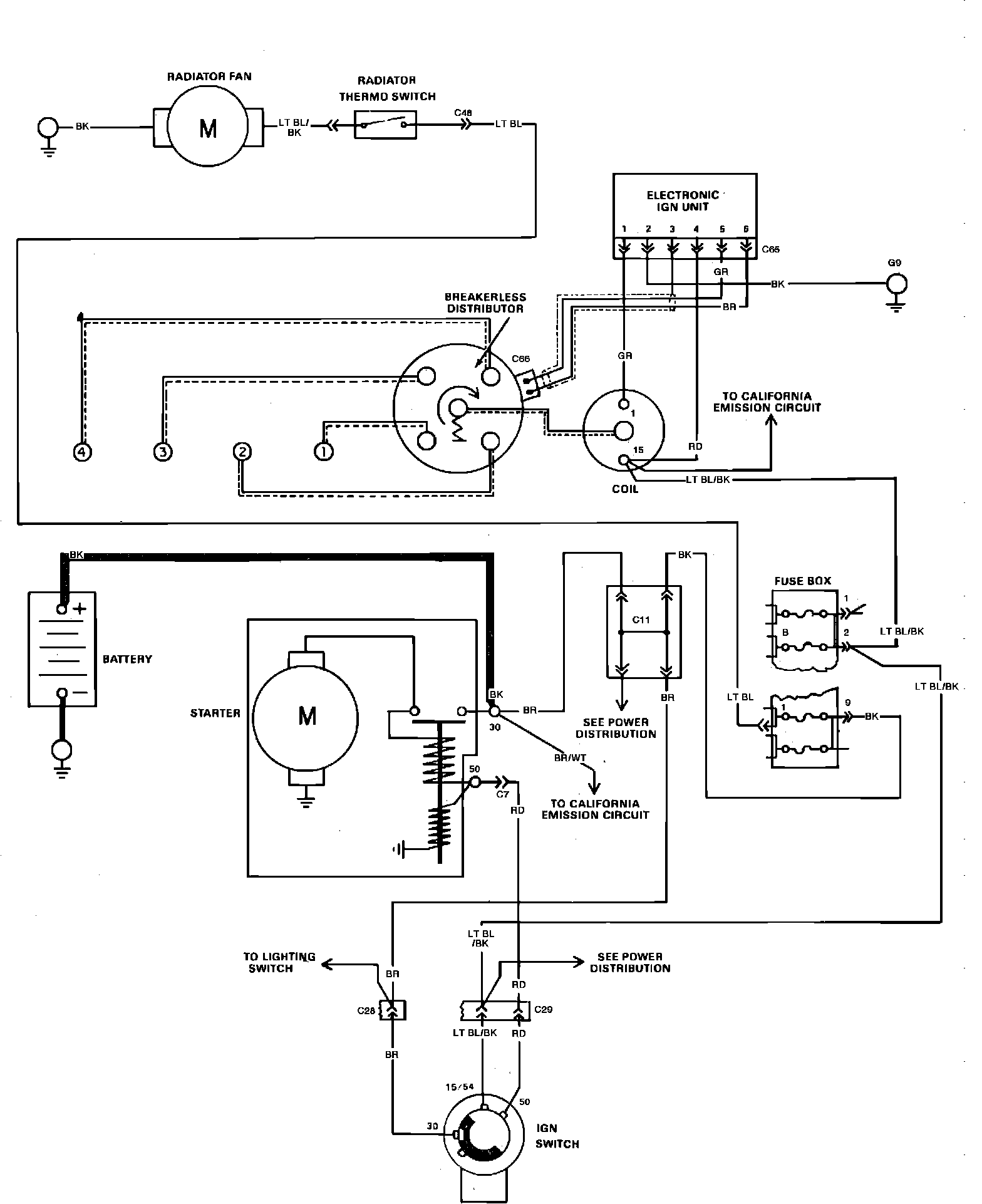

Cooling Fan (Engine), Ignition & Starting System:
