Alternator - Design Change
88yugo01NUMBER: 7-04
DATE: 5/6/88
SUBJECT: ALTERNATORS
VEHICLE: Yugo GV, GVL
DISTRIBUTION: All Dealer Service Departments
GENERAL: Alternator REAR HOUSING design has been changed. This includes changes to the stator windings, rectifier assembly, voltage regulator, rear shield, and the addition of a "W" (Wye) terminal.
EFFECTIVE: VIN JK404460
PARTS: The alternator is interchangeable with early type units as an assembly. Modified components specified above are NOT individually interchangeable.
I.D. Black tag: Iskra
AAK1172 14V 55A
APPLICATION:

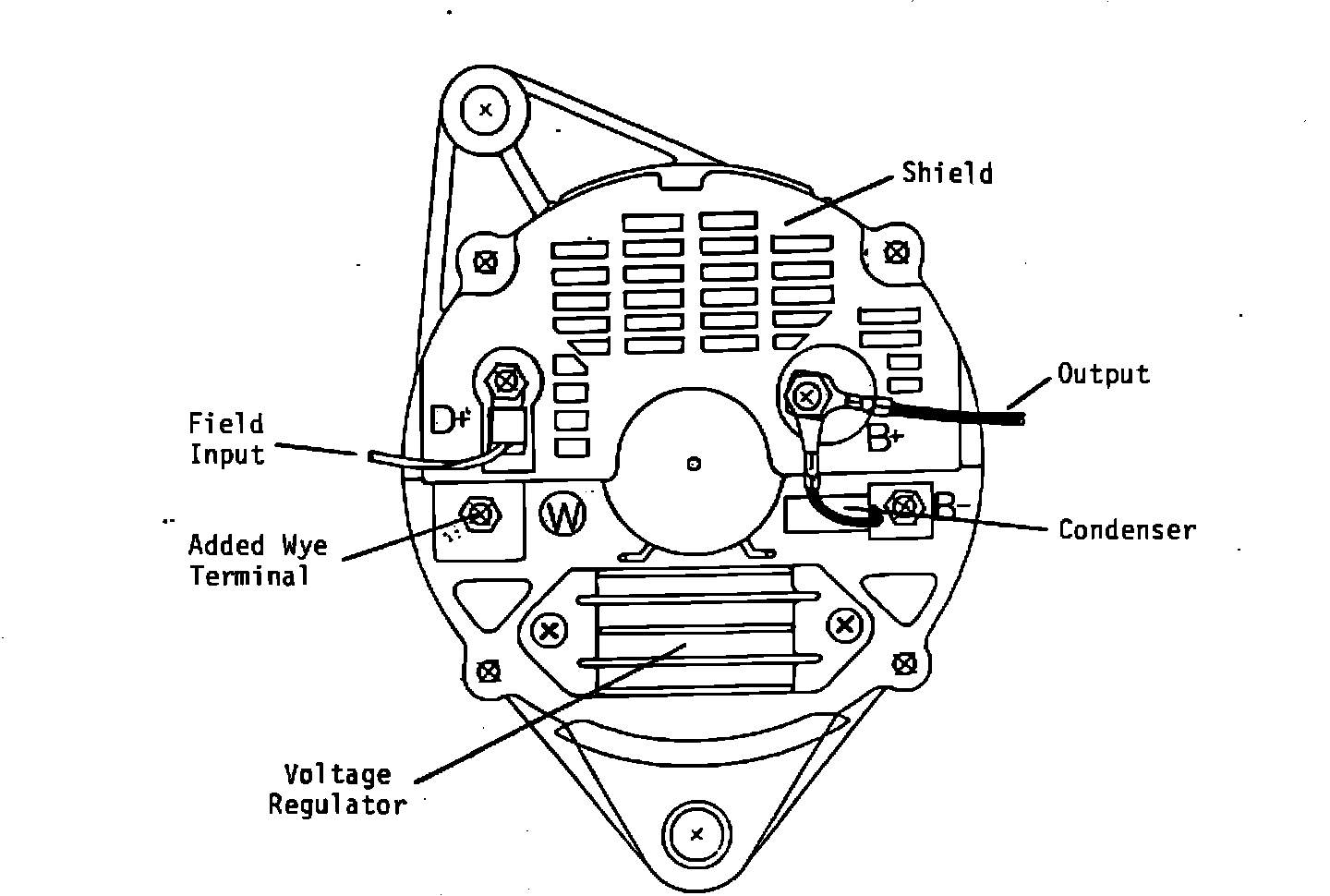

NOTE: A REAR VIEW of the new unit is attached.
ISKRA ALTERNATOR
AAK1172 14V 55A
REAR VIEW
