Home >> Yugo >> 1988 >> GV L4-1116cc 1.1L SOHC VIN 2 2-bbl >> Repair and Diagnosis >> Diagrams >> Fluid Diagrams >> Engine Lubrication

Engine Lubrication

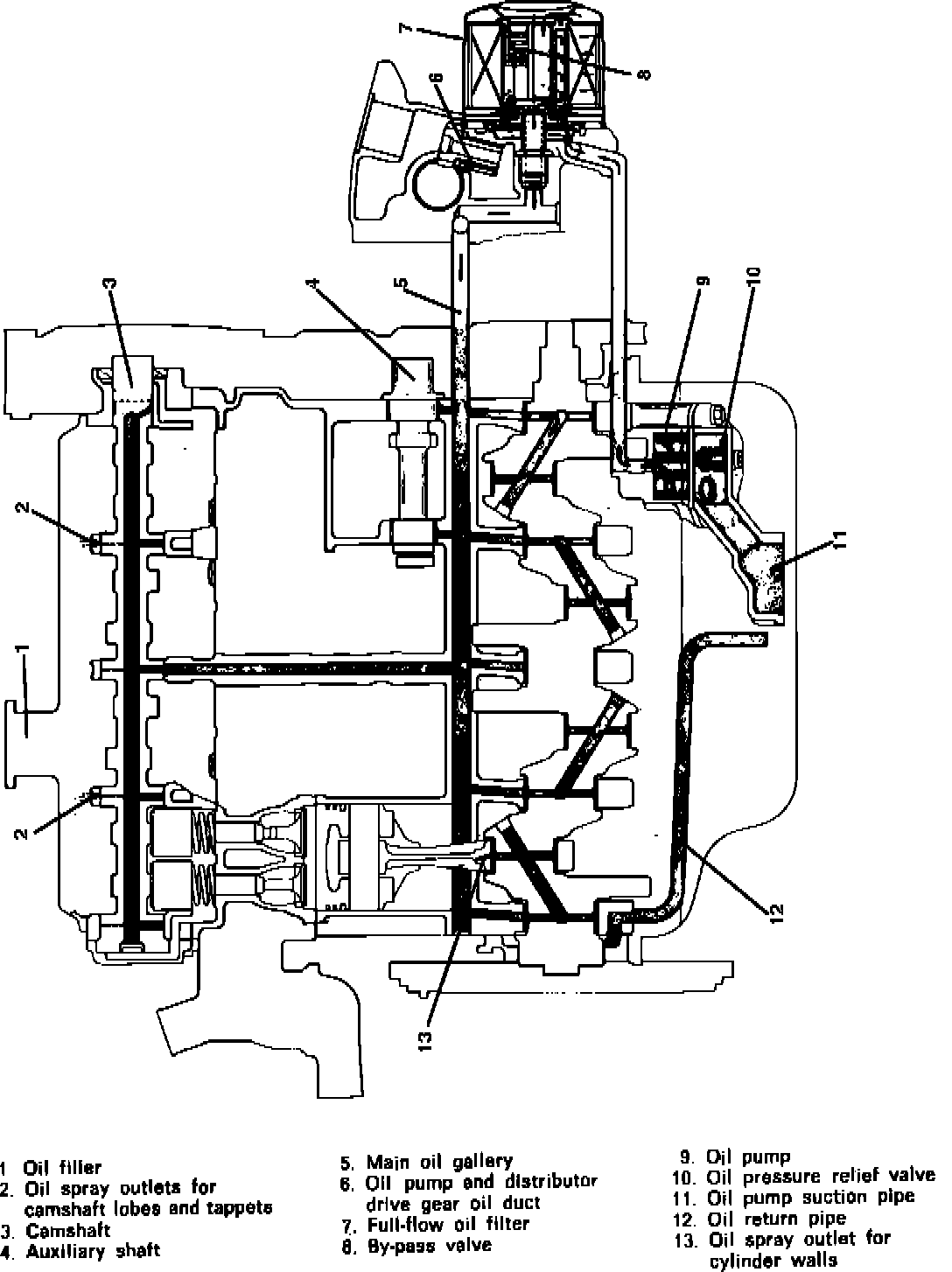

Fig. 14 Engine oil circuit:
