Front Axle Camber, Adjusting

Front Axle Camber, Adjusting

Special tools, testers and auxiliary items required

• Socket Wrench 21 mm (T10188)

• Torque Wrench (V.A.G 1332)

Perform the Following Work:

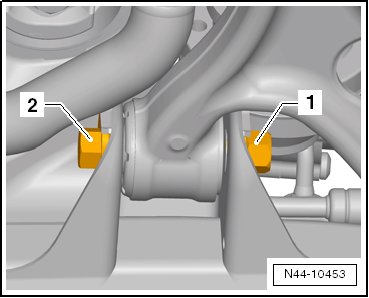

- Loosen the nut - 1 - and adjust the camber by rotating the eccentric bolt - 1 -.






- Tighten the camber adjustment bolt nut.






1. (T10188)

2. (V.A.G 1332)

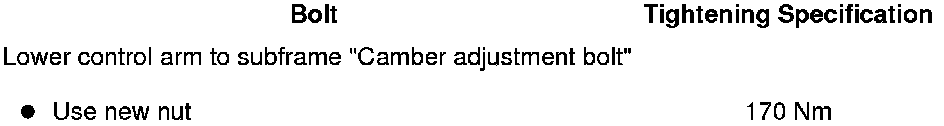

Tightening Specifications
