Cabin Air Filter / Purifier: Service and Repair

Dust and Pollen Filter with Activated Charcoal Filter Insert

The dust and pollen filter with activated charcoal filter element is located in the front passenger footwell.

Removal

- Turn off all electric consumers.

- Switch off the ignition.

- Remove the key.

- Remove the footwell trim on the front passenger side.

- Remove the footwell vent on the front passenger side. Refer to => [ Footwell Vent, Front Passenger Side ] Footwell Vent, Front Passenger Side.

- Release the tab - B - and unhook the rear cover - 1 - - A -.






- Pull the filter element out of the housing.

• Replacement interval for dust and pollen filter with activated charcoal filter.

Installation

Installation is carried out in the reverse order while noting the following:

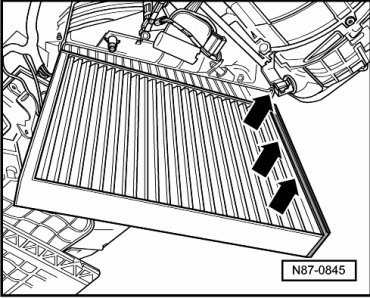

- Note the filter installation location - arrows -.
