Overhaul

Radiator Module

• The radiator module is comprised of the radiator, Air Conditioning (A/C) condenser, power steering fluid cooler, and transmission fluid cooler.

Conditions

• The radiator module is removed. Refer to => [ Radiator Module ] Radiator Module.

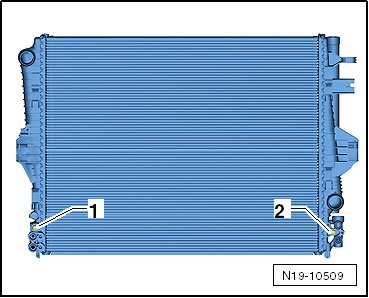

- Remove the bolts - 1 and 2 -.

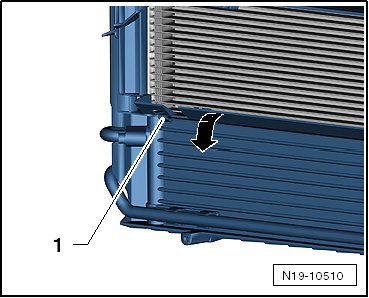

- Turn the radiator module around. Press the retainer - 1 - and remove the transmission fluid cooler.

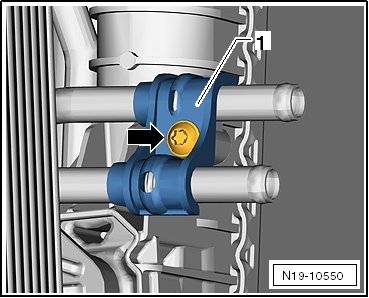

- Remove the bolt - arrow -, remove the bracket - 1 - and tilt the power steering fluid cooler out.

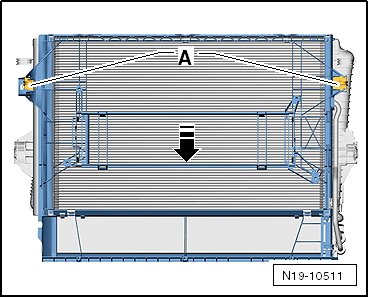

- Remove the retainers - A -, lift the A/C condenser slightly and remove it from the radiator in the - direction of the arrow -.
