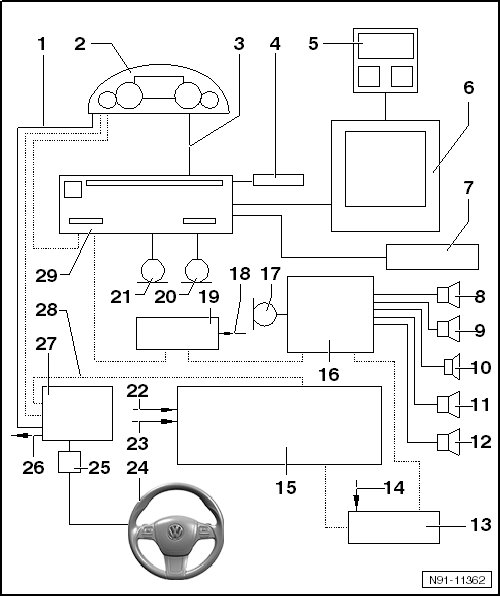

RNS 850 Radio Navigation System Premium, System Schematic

RNS 850 Radio Navigation System Premium, System Schematic






1 CAN Bus DDP

2 Instrument Cluster Control Module (J285)

3 LIN 1 - bus

4 External Audio Source Connection (R199)

5 Emergency Call Button (E276)

6 Front Information Display Control Head (J685)

7 Rearview Camera (R189) Or Rearview Camera System Control Module (J772)

8 Left Front Speaker Group

9 Left Rear Speaker Group

10 Center Mid/High Range Loudspeaker (R158)

11 Right Rear Speaker Group

12 Right Front Speaker Group

13 TV Tuner (R78)

• Not available in the USA or Canada.

14 AV Signal Input Or AUX Signal Input

15 Radio

16 Digital Sound System Control Module (J525)

17 Interior Microphone (R74) For Noise Compensation Measurement

18 FBAS, Data Wire From The TV Tuner To The DVD Changer

• Not available in the USA or Canada.

19 DVD Changer (R161)

20 Right Front Microphone (R141) For Telephone

• Installed in the right roof console.

21 Left Front Microphone (R140) For Telephone

• Installed in the left roof console.

22 Telephone Signal Input

23 AUX Signal Input

24 Multifunction Steering Wheel With Right Multifunction Buttons On Steering Wheel (E441) Or Left Multifunction Buttons On Steering Wheel (E440)

25 Steering Column Electronics Control Module (J527)

26 Can Bus BAP

27 Data Bus On Board Diagnostic Interface (J533)

28 MOST Bus, Fiber-Optic Cable

29 Information Electronics Control Module 1 (J794)

Antenna system overview, refer to => [ Antenna System with Radio/Navigation System RNS 850 Overview ] Antenna System with Radio/Navigation System RNS 850 Overview.
