Wiper Blade: Service and Repair

Wiper Blade

Removing






- Lift the wiper arm away from the glass.

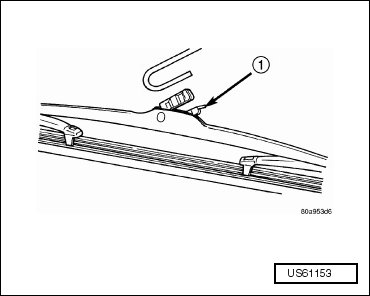

- Disengage the release tab (1) securing the wiper blade to the wiper arm and remove the wiper blade from the wiper arm.

Installing

- Position the blade onto the arm.

- Engage the blade to the retainer by pulling up on the blade until the tab (1) snaps into position.
