Crankshaft - Specifications

Main Bearing Cap Torque

Crankshaft Main Bearing Cap 21 Nm (16 ft lbs) + 90 degrees turn






Main Bearing Cap Sequence

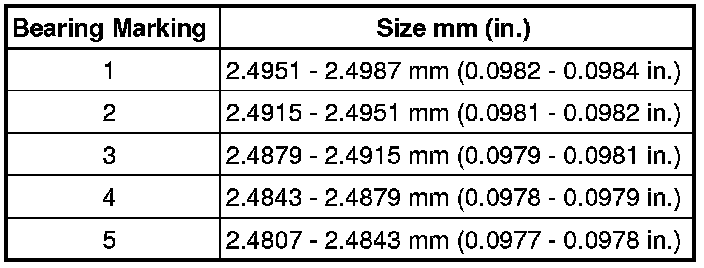

Upper and lower main bearing shells are available in five sizes. The chart below identifies the five bearing sizes.
