Crankcase Pressure Regulator Valve: Service and Repair

Positive Crankcase Ventilation Valve

Removing

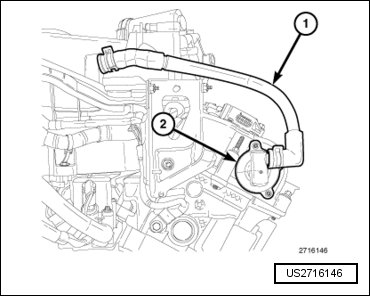

- Remove the hose (1) from the PCV valve (2).

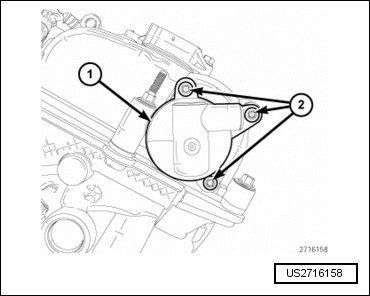

- Remove the three screws (2) and the PCV valve (1) from the right cylinder head cover.






Installing

- Clean and inspect the sealing surfaces of the PCV valve and cylinder head cover. The seal can be reused provided it is free of cuts or tears.






- Install the PCV valve seal in the cylinder head cover.

- Install the PCV valve (1) with three screws (2). Tighten the screws to 4 Nm (35 in. lbs.).

- Install the PCV hose (1) between the upper intake manifold and the PCV valve (2).
