Engine Controls - MIL ON/DTC P0128/Long Crank Times

01 11 03

March 10, 2011

2025698

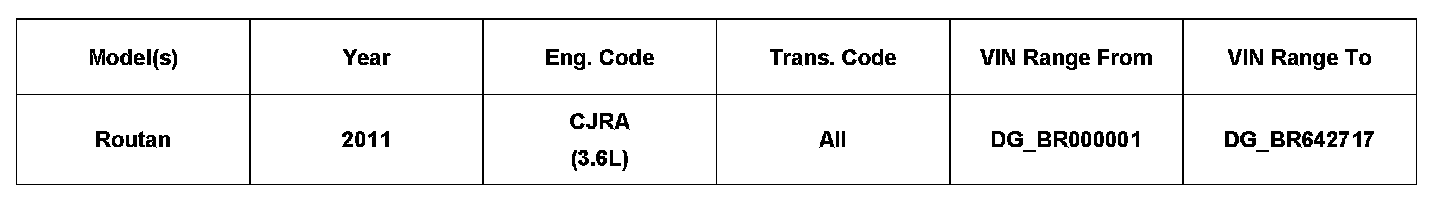

Vehicle Information

Condition

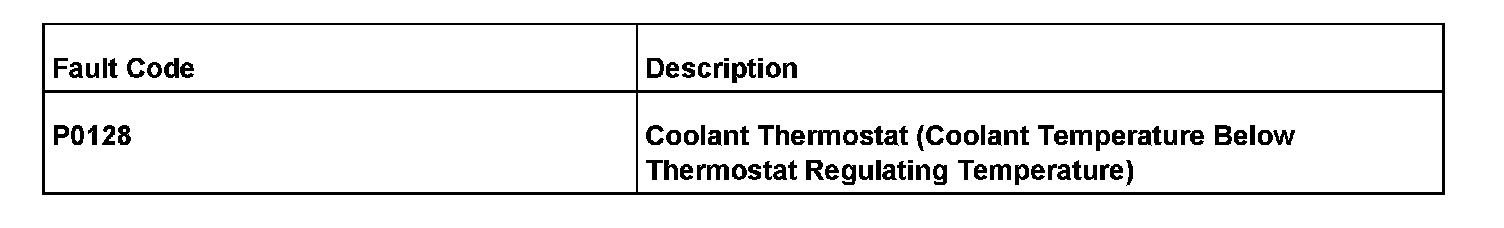

Update Programming, MIL ON, P0128 Coolant temperature below thermostat regulating temperature, or long crank times

Update programming of the Powertrain Control Module (PCM) with improved software to correct the DTC P0128 or long crank times.

Improved PCM software has been introduced in production as of January 27, 2011.

Update programming of the Powertrain Control Module (PCM) with new software.

DIAGNOSIS

Using a StarMOBILE with ElsaWeb and the appropriate Diagnostic Procedures, verify all engine systems are functioning as designed. If DTC's are present, record them on the repair order and repair as necessary before proceeding with this bulletin. If the customer describes the Symptom/Condition, or it can be reproduced, perform the Repair Procedure.

REPAIR PROCEDURE

Note

If this flash process is interrupted / aborted, the flash should be restarted.

1. Reprogram the Powertrain Control Module using the StarMOBILE with the latest software.

2. After PCM reprogramming, the following must be performed:

^ Clear any DTC's that may have been set in other modules due to reprogramming.

^ Clear the Variable Line Pressure (VLP) Counters, found in the Misc. Function menu for the PCM / ECU. Perform the Quick Learn function, found in the Misc. Function menu for the PCM / ECU.

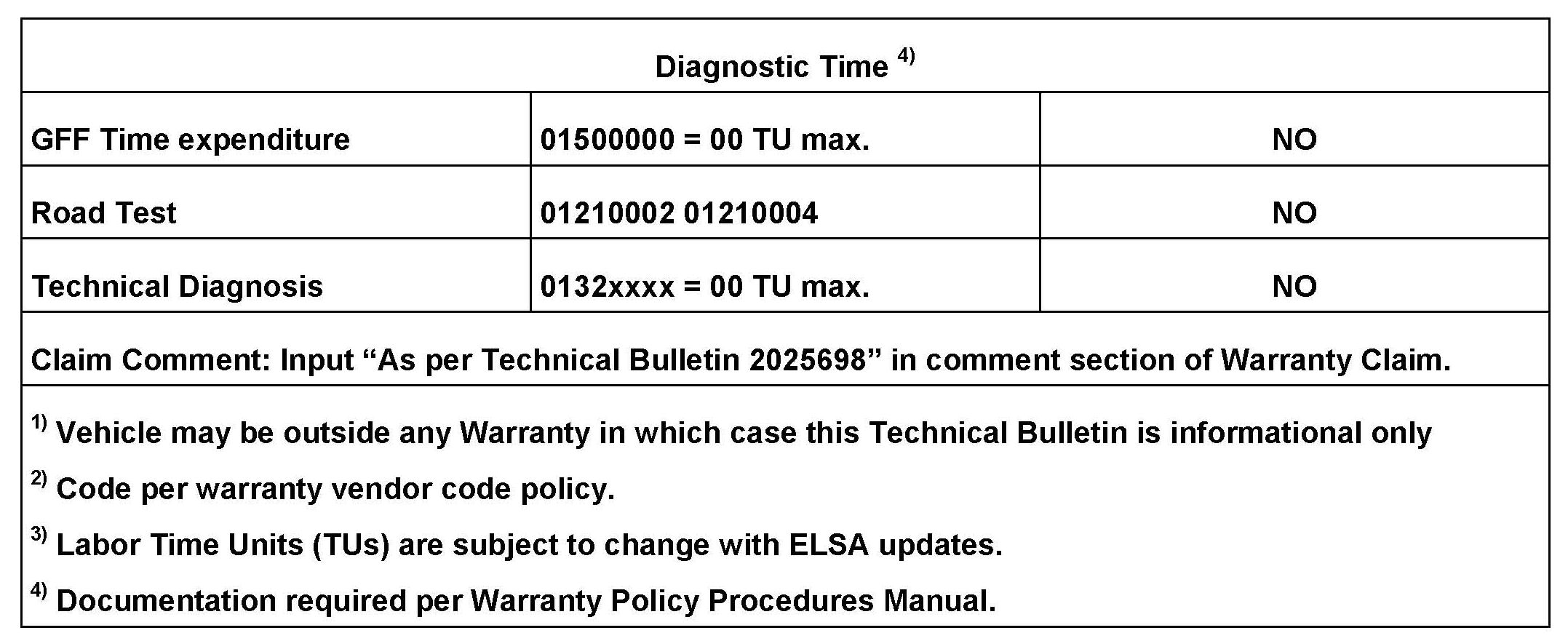

Warranty

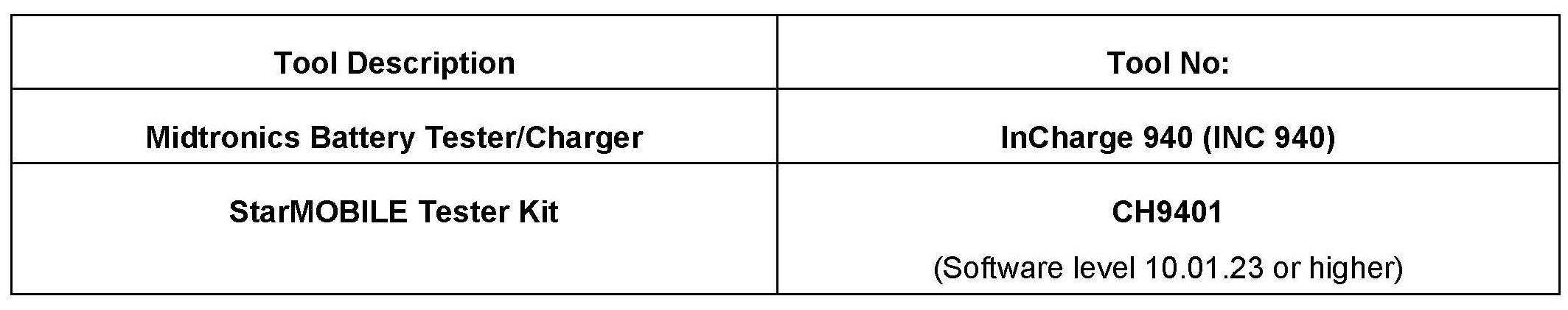

Required Parts and Tools

Additional Information

All part and service references provided in this Technical Bulletin are subject to change and/or removal.
Always check with your Parts Dept. and Repair Manuals for the latest information.
