Fog/Driving Lamp: Tools and Equipment

Fog Lamp Bulb

Removing






- Disconnect the negative battery cable. Refer to => [ Battery, Disconnecting and Connecting ] Tools and Equipment.

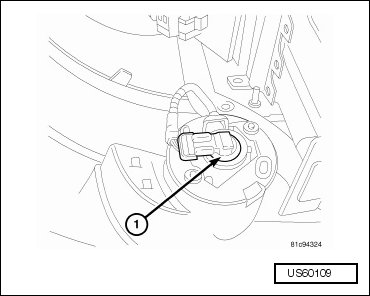

- From behind the bumper fascia, or through the access panel on the air dam, twist the bulb (1) counterclockwise, and remove the bulb.

- Disconnect the electrical connector from the fog lamp bulb.

Installing






- Connect the electrical connector to the fog lamp bulb.

- Install bulb (1) to the fog lamp and twist the bulb clockwise.

- Connect the negative battery cable. Refer to => [ Battery, Disconnecting and Connecting ] Tools and Equipment.
