Front Defroster Duct

Front Defroster Duct


Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions may result in accidental airbag deployment and possible serious or fatal injury.

Removing






• Take the proper precautions to protect the front face of the instrument panel from cosmetic damage during this service procedure.

- Disconnect and isolate the negative battery cable.

- Remove the defroster grille from the top of the instrument panel.

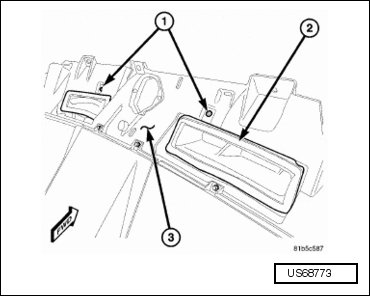

- Remove the two screws (1) that secure the defroster duct (2) to the top of the instrument panel cover (3).






• It is not necessary to remove the front HVAC housing from the vehicle when servicing the defroster duct. The instrument panel should be removed separately.

- Remove the instrument panel..

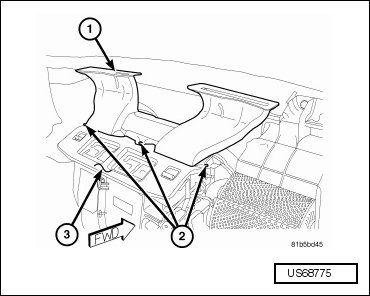

- Remove the three screws (2) that secure the defroster duct (1) to the top of the HVAC air distribution housing (3) and remove the duct.

Installing






• If a foam seal on the defroster duct is deformed or damaged, it must be replaced.

- Position the defroster duct (1) onto the top of the HVAC air distribution housing (3).

- Install the three screws (1) that secure the defroster duct to the air distribution housing. Tighten the screws to 2 Nm (17 in lbs).

- Install the instrument panel..






- Install the two screws (1) that secure the defroster duct (2) to the top of the instrument panel cover (3). Tighten the screws to 2 Nm (17 in lbs).

- Install the defroster grille onto the top of the instrument panel.

- Connect the negative battery cable.
