Rocker Arm Assembly: Service and Repair

Rocker Arm

Removing

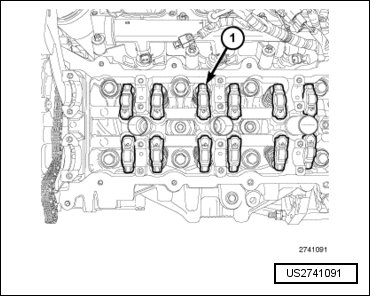

• The LH cylinder head rocker arms are shown, the RH cylinder head rocker arms are similar.

- Disconnect the negative battery cable.

- Remove the camshaft(s). Refer to => [ Left Camshafts ] Left Camshafts or => [ Right Camshafts ] Right Camshafts.

• If the rocker arms are to be reused, identify their positions so that they can be reassembled into their original locations.

- Remove the rocker arm(s) (1).

Installing






• The LH cylinder head rocker arms are shown, the RH cylinder head rocker arms are similar. If the rocker arms are being reused, reassemble them into their original locations.

- Lubricate the rocker arms with clean engine oil before installation.

- Install the rocker arm(s) (1).

- Install the camshaft(s), phasers, cylinder head cover(s) and upper intake manifold. Refer to => [ Left Camshafts ] Left Camshafts or => [ Right Camshafts ] Right Camshafts.

- Connect the negative battery cable.
