Front Fender Liner: Service and Repair

Front Wheelhouse Liner

Removing

- Raise and suitably support the vehicle.

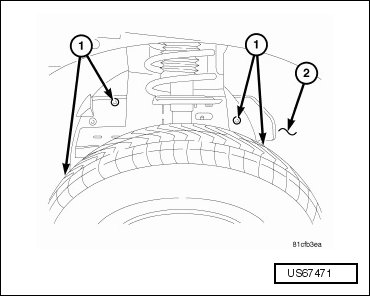

- Remove the push pin retainers (1) securing the liner (2) to the body.

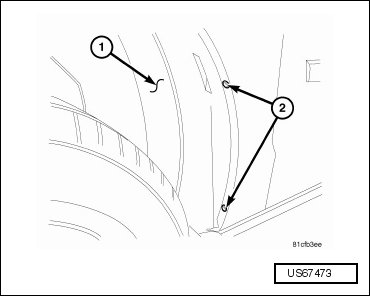

- Remove the screws (2) securing the liner (1) to the fender.






- Remove the wheelhouse liner (1) from the vehicle.

Installing

- Place the wheelhouse line (1) into position on the vehicle.






- Install the screws (2) securing the wheelhouse liner (1) to the fender.

- Install the push pin retainers (1) securing the liner (2) to the body.






- Lower the vehicle.
