Steering Control Module






Steering System - Connector Views

Power steering control module -J500- Power Steering

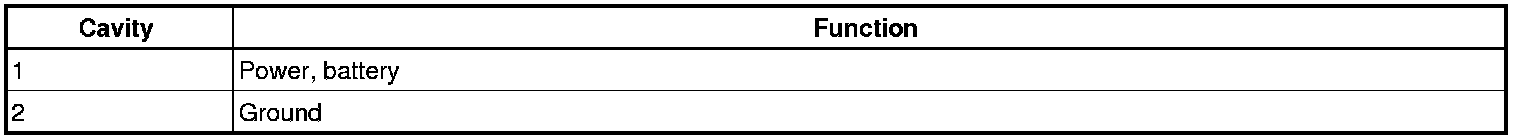

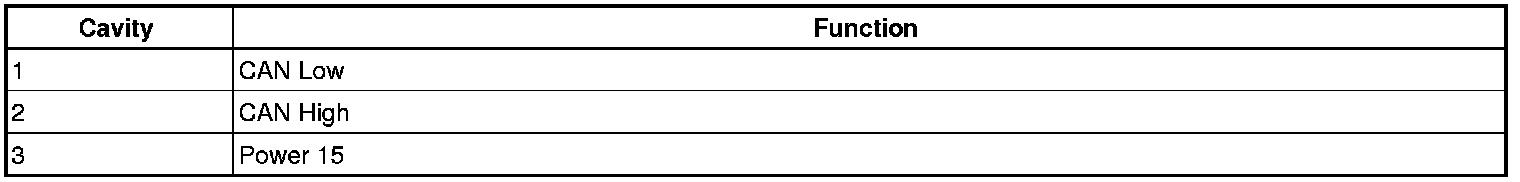

3 - Pins

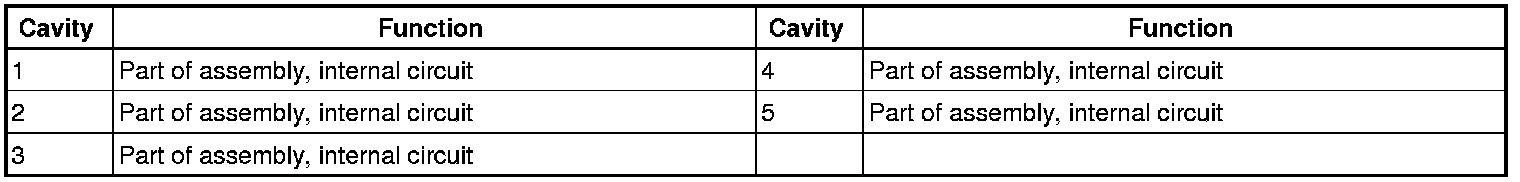

5 - Pins
