Transmission Cooler Line Quick Connect Fitting

Transmission Cooler Line Quick Connect Fitting

Special tools, testers and auxiliary items required

• Disconnect Tool (8875A)

Disconnecting

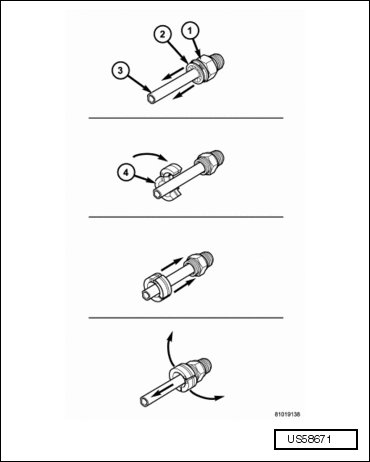

- Remove the dust cap (2) by pulling it straight back off of the quick connect fitting (1).

- Place the disconnect tool (8875A) (4) onto transmission cooler line with the fingers of the tool facing the quick connect fitting.

- Slide the disconnect tool (8875A) down the transmission line and engage the fingers of the tool into the retaining clip. When properly engaged in the clip, the tool will fit flush against the quick connect fitting.

- Rotate the release tool 60 degrees to expand the retaining clip.

- While holding the release tool against the quick connect fitting, pull back on the transmission cooler line to remove.

Connecting

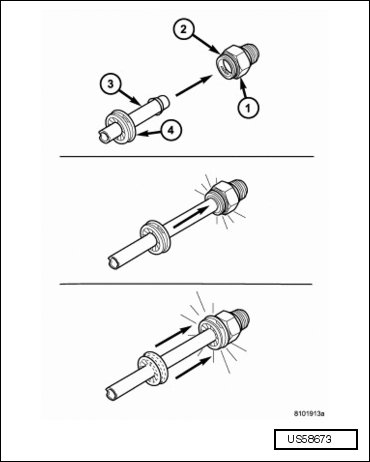

- Align the transmission cooler line (3) with quick connect fitting (2) while pushing straight into the fitting.

- Push in on the transmission cooler line (3) until a "click" is heard or felt.

• If dust cap will not snap into place, repeat the above steps.

- Slide the dust cap (4) down the transmission cooler line and snap it over the quick connect fitting (2) until it is fully seated and rotates freely. The dust cap will only snap over the quick connect fitting when the transmission cooler line is properly installed.
