Crankshaft - Specifications
Main Bearing Cap Torque
Tighten the inner main bearing cap bolts to 20 Nm (15 ft lbs) + 90 degree additional turn.

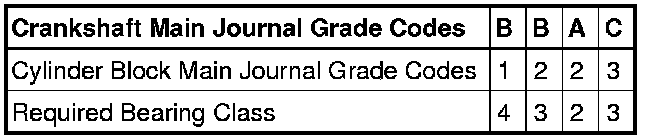

Main Bearing Selection Chart

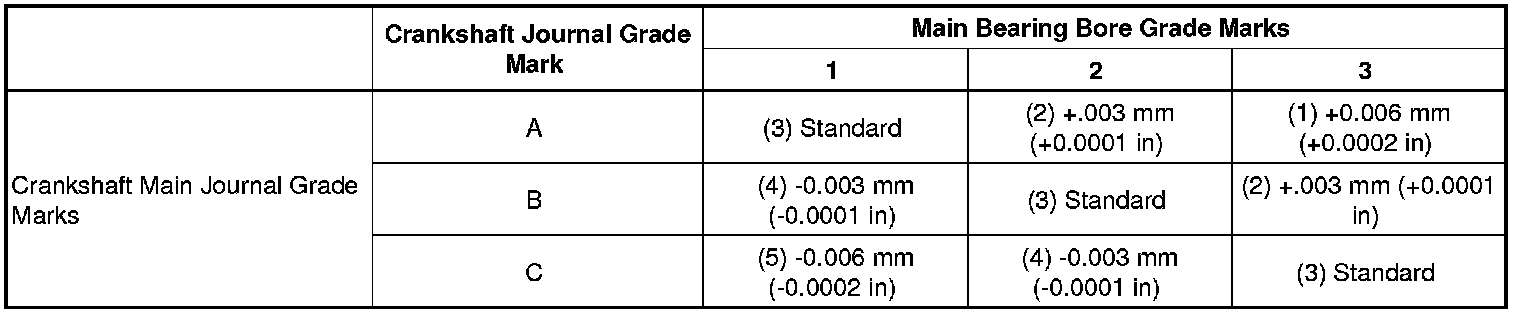

Crankshaft Main Bearing Selection Data
Main Bearing Cap Torque
Tighten the inner main bearing cap bolts to 20 Nm (15 ft lbs) + 90 degree additional turn.
Main Bearing Selection Chart
Crankshaft Main Bearing Selection Data
