License Plate Lamp: Service and Repair

License Plate Lamp

Removing






- Disconnect the negative battery cable. Refer to => [ Battery, Disconnecting and Connecting ] Tools and Equipment.

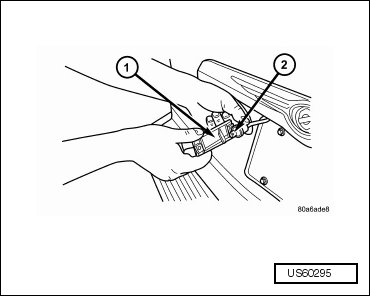

- Using a small screwdriver, press inward the locking tab on the outboard side of the lamp unit (1) and pull down on the lamp unit for removal.

- Remove the lamp from the light bar and handle.






- Remove the bulb (2) from the socket (1).

Installing






- Push bulb (2) into lamp unit (1) socket.

- Install the lamp into place ensuring the locking tab is secure.

- Connect the negative battery cable. Refer to => [ Battery, Disconnecting and Connecting ] Tools and Equipment.
