Rear Wiper Arm

Rear Wiper Arm

Removing






- Pivot the arm cap upward.

- Remove the wiper arm nut.

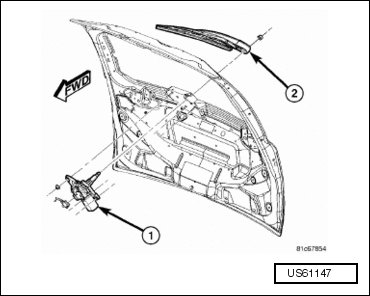

- Using a suitable 2 jaw puller, remove the wiper arm (2) from the pivot.

Installing






- Verify that the wiper motor is in the parked position by using the vehicles wiper switch.

- Position the wiper arm (2) onto pivot.

- Install the wiper arm nut. Tighten the nut to 10 Nm (89 in lbs).

- Install the pivot nut cap to the wiper arm until it engages.
