Starter Relay

Starter Relay

Removing

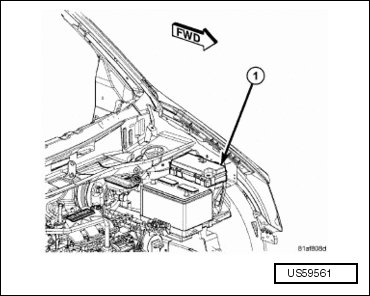

The starter relay is located in the power distribution center (1). The PDC is located in the engine compartment near the left inner fender. Refer to the label on the PDC cover for relay location.

- Remove the PDC cover.

- Remove the relay from the PDC.

- Test the condition of the relay terminals and PDC connector terminals for damage or corrosion. Repair if necessary before installing relay.

- Test for pin height (pin height should be the same for all terminals within the power distribution center connector). Repair if necessary before installing relay.

Installing






- Refer to PDC (1) cover for starter relay location.

- Install the relay to the PDC.

- Install the cover to the PDC.
